General Description
MX7824 General Description
The MAX154/MAX158 and MX7824/MX7828 are highspeed, multi-channel analog-to-digital converters (ADCs). The MAX154 and MX7824 have four analog input channels, while the MAX158 and MX7828 have eight channels. Conversion time for all devices is 2.5s. The MAX154/MAX158 also feature a 2.5V on-chip reference, forming a complete high-speed data acquisition system.
All four converters include a built-in track/hold, eliminating the need for an external track/hold with many input signals. The analog input range is 0V to +5V, although the ADC operates from a single +5V supply.
Microprocessor interfaces are simplified by the ADC's ability to appear as a memory location or I/O port without the need for external logic. The data outputs use latched, three-state buffer circuitry to allow direct connection to a microprocessor data bus or system input port.
The MX7824 and MX7828 are pin compatible with Analog Devices' AD7824 and AD7828. The MAX154 and MAX158, which feature internal references, are also compatible with these products.
MX7824 Maximum Ratings
Supply Voltage, VDD to GND ........................................0V, +10V
Voltage at Any Other Pins......................GND - 0.3V, VDD + 0.3V
Output Current (REF OUT)..................................................30mA
Power Dissipation (any package) to +75°C ..................450mW
Derate above +25°C by ..............................................6mW/°C
Operating Temperature Ranges
MX7824, MX7828
KN/LN/KCW_/LCW_............................................0°C to +70°C
BQ/CQ .............................................................-40°C to +85°C
TQ/UQ............................................................-55°C to +125°C
Storage Temperature Range .........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ..........................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MX7824 Features
`One-Chip Data Acquisition System
`Four or Eight Analog Input Channels
`2.5s per Channel Conversion Time
`Internal 2.5V Reference (MAX154/MAX158 only)
`Built-In Track/Hold Function
`1/2LSB Error Specification
`Single +5V Supply Operation
`No External Clock
`New Space-Saving SSOP Package
`Four or Eight Analog Input Channels
`2.5s per Channel Conversion Time
`Internal 2.5V Reference (MAX154/MAX158 only)
`Built-In Track/Hold Function
`1/2LSB Error Specification
`Single +5V Supply Operation
`No External Clock
`New Space-Saving SSOP Package
MX7824 Typical Application
·Digital Signal Processing
·High-Speed Data Acquisition
·Telecommunications
·High-Speed Servo Control
·Audio Instrumentation
·High-Speed Data Acquisition
·Telecommunications
·High-Speed Servo Control
·Audio Instrumentation

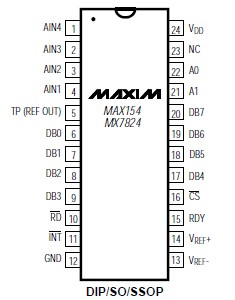

MX7824 Connection Diagram
MX7824
