Part Number: MX88L284AEC



MFG: MX

Package Cooled: QFP



Description: The MX88L284AEC is a highly integration chip for Flat Panel Display application. It's fully compatible with MX88L284...


Urgent Purchase

MX88L284AEC General Description


The MX88L284AEC is a highly integration chip for Flat Panel Display application. It's fully compatible with MX88L284. With Macronix's SmartscalingTM -2 filter, it provides high quality scaled video image and format conversion capability.

MX88L284AEC Features

` Converts NTSC/PAL and PC video signal into flat panel display device timing and resolution
` Provide Full frame buffer, reduce frame buffer (w/ compression) and frame buffer less optional architecture.
` Built-in memory and output clock generator
` Built-in OSD generator with 64 ROM font, and 64 programmable RAM fonts
` Provide 90 degree rotation for internal OSD to support portrait direction display
` Arbitrary scaling from 1/32 to 32 times with filters (SmartScalingTM 2+ Technology)
` Support Auto-tracking and Auto-position capabilities (SmartTrackingTM Technology)
` Support Auto-gain capability for input image
` Support Flip and Mirror capabilities
` On-chip brightness and contrast adjustments
` On-chip g correction for panel compensation
` Support dynamic dithering capability to make 18 bit video as good as 24 bit quality
` Support H/V Sync. Polarity and pulse width information for mode detection
` Support two types of CPU interface (direct and serial bus)
` Provide 1 pixel/clock and 2 pixel/clock output to connect TFT LCD panel directly
` Built-in Color space converter for video decoder input
` Support configurable SDRAM/SGRAM (x0 x1 and x2 ) for different resolution to minimize the system cost
` Support Composite Sync. input
` Support DPMS and H/V sync. Interrupt

MX88L284AEC Typical Application

` LCD monitor
` LCD projector
` Other Flat Panel Display Application (DMD, PDP, PALC .)

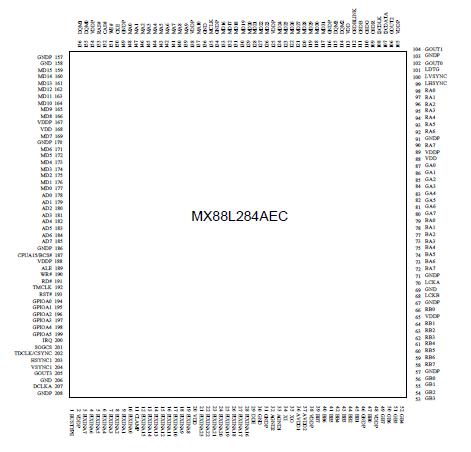

MX88L284AEC Connection Diagram
