General Description
MXED202 General Description
The MXED202 Row Driver supports up to 128-row OLED panel displays. The MXED202 has low "on" switch resistance, and support of voltage precharge options, ensures uniform luminance at rapid row scan rates. This is the first ASSP production row driver for OLED display OEM's, enabling the development and manufacture of this new standard in flat-panel display technology.
MXED202 Maximum Ratings
| Parameter |
Operating Condition |
Min |
Typ |
Max |
Units |
| Ambient temp |
- |
-65 |
155 |
||
| Low voltage supply |
- |
-0.3 |
7.0 |
V | |
| High voltage supply |
- |
-0.3 |
35.0 |
V |
MXED202 Features
• CMOS High Voltage Process: 9V-30V Display Panel Supply Compatible
• 128 Output Channels, Cascadable; Configurable 120-Output Mode
• 150mA Maximum Current Capability per channel (two channels maximum active simultaneously)
• 20 Ohm Maximum Row Switch "On" Resistance
• Token-Based Control: Bidirectional data transfer; Single and Dual-Token Mode
• Current Source Magnitude User Control: 4 A to 1 mA
• 6-Bit Monochromatic/Color Gray-Scale User Control
• Monochromatic Voltage Precharge Options
• 3.3 V to 5 V logic supply
• Up to 100kHz clock frequency
• Gold-Bumped Die @ ~ 60 micron Output Pitch
• TCP packaging
• Companion to MXED102 240-Channel OLED Column Driver
• 128 Output Channels, Cascadable; Configurable 120-Output Mode
• 150mA Maximum Current Capability per channel (two channels maximum active simultaneously)
• 20 Ohm Maximum Row Switch "On" Resistance
• Token-Based Control: Bidirectional data transfer; Single and Dual-Token Mode
• Current Source Magnitude User Control: 4 A to 1 mA
• 6-Bit Monochromatic/Color Gray-Scale User Control
• Monochromatic Voltage Precharge Options
• 3.3 V to 5 V logic supply
• Up to 100kHz clock frequency
• Gold-Bumped Die @ ~ 60 micron Output Pitch
• TCP packaging
• Companion to MXED102 240-Channel OLED Column Driver

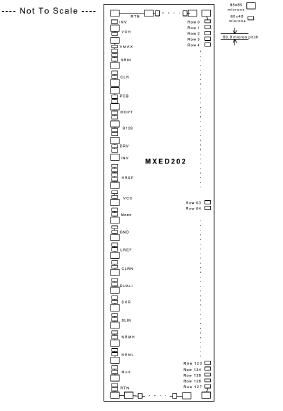

MXED202 Connection Diagram
MXED202
PDF/DataSheet Download
- Datasheet: MXED202
- File Size: 573676 KB
- Manufacturer: CLARE [Clare, Inc.]
- Click here to Download
