Five Points

Part Number: MXL1016



MFG: MXL

Package Cooled: SOP-8

D/C: 09+

Description: The Maxim MXL1016 (10ns typ) and MXL1116 (12ns typ) high-speed, complementary-output comparators are d...


Urgent Purchase

MXL1016 General Description


The Maxim MXL1016 (10ns typ) and MXL1116 (12ns typ) high-speed, complementary-output comparators are designed specifically to interface directly to TTL logic while operating from either a dual ±5V supply or a single +5V supply.

The MXL1016/MXL1116 remain stable with the outputs in the active region, which greatly reduces output instability common with slow-moving input signals. In addition, an output latch (LE) is provided.

For lower-power, higher-performance comparators, see the MAX912/MAX913 dual/single comparator data sheet. The MAX913 is an improved, plug-in replacement for the MXL1016 and MXL1116, and the MAX912 is the dual equivalent to the MAX913.

MXL1016 Maximum Ratings

Positive Supply Voltage............................................................7V
Negative Supply Voltage........................................................7V
Differential Input Voltage
MXL1016............................................................................±5V
MXL1116..........................................................................±15V
Input Voltage (either input)
MXL1016 ..........................................................Equal to Supplies
MXL1116.......................................................(V 0.3V) to 15V
Latch Pin Voltage .............................................Equal to Supplies
Output Current (continuous)............................................±20mA
Continuous Power Dissipation (TA = +70)
Plastic DIP (derate 9.09mW/ above +70) ..................727mW
SO (derate 5.88mW/ above +70)...............................471mW
CERDIP (derate 8.00mW/ above +70)........................640mW
Operating Temperature Ranges:
MXL1016C/MXL1116C ..............................................0 to +70
MXL1016MJ .......................................................55 to +125
Storage Temperature Range ............................65 to +150
Lead Temperature (soldering, 10sec) ..............................+300

MXL1016 Features

· Ultra Fast (10ns typ)
· Single +5V or Dual ±5V Supply Operation
· Input Common-Mode Extends to Negative Supply (MXL1116)
· Inputs Can Exceed the Positive Supply Up to +15V (MXL1116) Without Damage
· Complementary TTL Outputs
· Low Offset Voltage: 1mV
· No Minimum Input Slew-Rate Requirement
· No Power-Supply Current Spiking
· Output Latch

MXL1016 Typical Application

·High-Speed A/D Converters
·Zero-Crossing Detectors
·Current Sense for Switching Regulators
·High-Speed Sampling Circuits
·High-Speed Triggers
·Line Receivers
·Extended Range V/F Converters
·Fast Pulse Height/Width Discriminators

MXL1016 Connection Diagram

MXL1016 Connection Diagram

MXL1016 datasheet

MXL1016
PDF/DataSheet Download

Find MXL1016 Suppliers

  • ·MXL1001
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001 Datasheet Download
  • ·MXL1001ACH
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001ACH Datasheet Download
  • ·MXL1001ACJ8
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001ACJ8 Datasheet Download
  • ·MXL1001ACN8
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001ACN8 Datasheet Download
  • ·MXL1001ACS8
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001ACS8 Datasheet Download
  • ·MXL1001AMH
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001AMH Datasheet Download
  • ·MXL1001AMJ8
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001AMJ8 Datasheet Download
  • ·MXL1001CH
  • MAXIM [Maxim Integrated Products]
  • Precision Operational Amplifier
  • 43242 KB
  • MXL1001CH Datasheet Download

Related Part Number

MXL1016 Relative Products

  • MXL1014

    MXL1014

    The Maxim MXL1013 is a precision dual op amp that upgrades the performance of popular devices such as the MC1458/MC1558, LM158 and OP221. The Maxim MXL1014 is a precision quad op amp that directly upgrades designs in the industry-standard 14-pin DIP configur...

  • MXL1013

    MXL1013

    The Maxim MXL1013 is a precision dual op amp that upgrades the performance of popular devices such as the MC1458/MC1558, LM158 and OP221. The Maxim MXL1014 is a precision quad op amp that directly upgrades designs in the industry-standard 14-pin DIP configur...

  • MXL1001

    MXL1001

    The MXL1001 offers significant specification improvement over earlier precision operational amplifiers and is pincompatible with the industry-standard LT1001. Particular attention has been paid to the optimization of key parameters such as input offset volta...

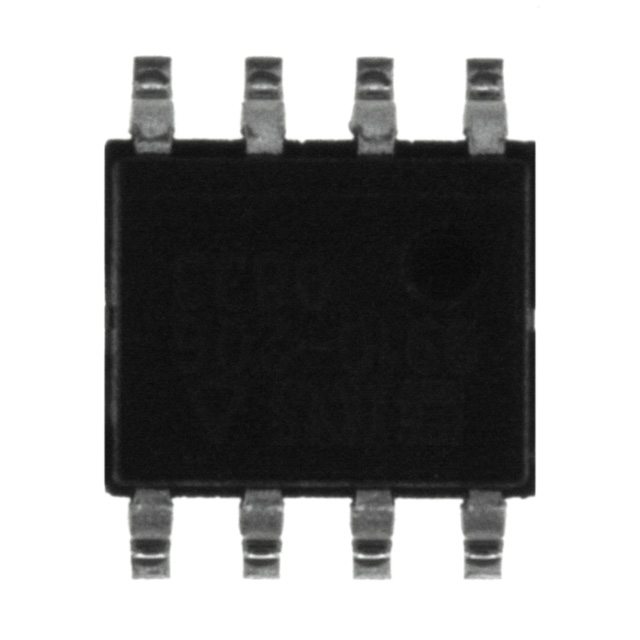

  • MXHV9910BTR
