Product Details

Description



Features:

• Single Wide Power Supply Range 2.3 to 3.6 Volts
• Very low standby current 2.0µA at 3.0V (Typical)
• Very low operating current 2.0mA at 3.0V and 1µs (Typical)
• Very low Page Mode operating current 0.8mA at 3.0V and 1µs (Typical)
• Simple memory control Dual Chip Enables (CE1 and CE2) Output Enable (OE) for memory expansion
• Low voltage data retention Vcc = 1.8V
• Very fast output enable access time 30ns OE access time
• Automatic power down to standby mode
• TTL compatible three-state output driver

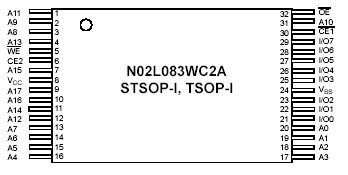

Pinout

Connection Diagram


Specifications

Item Symbol Rating Unit
Voltage on any pin relative to VSS VIN,OUT 0.3 to VCC+0.3 V
Voltage on VCC Supply Relative to VSS VCC 0.3 to 4.5 V
Power Dissipation PD 500 mW
Storage Temperature TSTG 40 to 125
Operating Temperature TA -40 to +85
Soldering Temperature and Time TSOLDER 260, 10sec



Description

The N02L083WC2A is an integrated memory device containing a 2 Mbit Static Random Access Memory organized as 262,144 words by 8 bits. The device is designed and fabricated using NanoAmp's advanced CMOS technology to provide both high-speed performance and ultra-low power. The device operates with two chip enable (CE1 and CE2) controls and output enable (OE) to allow for easy memory expansion. The N02L083WC2A is optimal for various applications where low-power is critical such as battery backup and hand-held devices. The N02L083WC2A device can operate over a very wide temperature range of -40 to +85 and is available in JEDEC standard packages compatible with other standard 256Kb x 8 SRAMs
