Product Details

Description



Features:

• Single Wide Power Supply Range 2.3 to 3.6 Volts
• Low standby current 3A maximum at 3.6V
• Very low operating current 2 mA at 3.6V and 1Mhz (Typical)
• Very low Page Mode operating current 0.5mA at 3.6V and 1Mhz (Typical)
• Simple memory control
Dual Chip Enables (CE1 and CE2)
Output Enable (OE) for memory expansion
• Low voltage data retention Vcc = 1.8V
• Automatic power down to standby mode
• TTL compatible three-state output driver

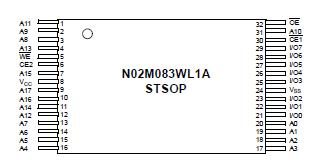

Pinout

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Voltage on any pin relative to VSS
VIN,OUT
0.3 to VCC+0.3
V
Voltage on VCC Supply Relative to VSS
VCC
0.3 to 4.5
V
Power Dissipation
PD
500
mW
Storage Temperature
TSTG
65 to 150
Operating Temperature
TA
-40 to +85
Soldering Temperature and Time
TSOLDER
240, 10sec(Lead only)



Description

The N02M083WL1A is an integrated memory device intended for non life-support (Class 1 or 2) medical applications. This device comprises a 2 Mbit Static Random Access Memory organized as  262,144 words by 8 bits. The device is designed and fabricated using NanoAmp's advanced CMOS technology with reliability inhancements for medical users. The base design is the same as NanoAmp's N02M0818L2A, which has further reliability processing for life-support (Class 3) medical applications. The device operates with two chip enable (CE1 and CE2) controls and output enable (OE) to allow for easy memory expansion.

The N02M083WL1A is optimal for various applications where low-power is critical such as battery backup and hand-held devices.

The N02M083WL1A can operate over a very wide temperature range of -40oC to +85oC and is available in JEDEC standard packages compatible with other standard 256Kb x 8 SRAMs
