N80C196MD

Connectivity: -
EEPROM Size: -
Speed: 16MHz
Core Size: 16-Bit
Packaging: Tube
Oscillator Type: External
Program Memory Size: -
Program Memory Type: ROMless
Operating Temperature: 0°C ~ 70°C
Data Converters: A/D 14x10b
Voltage - Supply (Vcc/Vdd): 4.5 V ~ 5.5 V
Number of I /O: 64
Peripherals: PWM, WDT
Series: 80C
Manufacturer: Intel
Core Processor: MCS 96
RAM Size: 488 x 8
Package / Case: 84-PLCC


Features:

` High Performance CHMOS 16-bit CPU
` 16 MHz Operating Frequency
` 32 Kbytes of On-chip OTPROM/ROM
` 744 Bytes of On-chip Register RAM
` Register-to-register Architecture
` 16 Prioritized Interrupt Sources
` Peripheral Transaction Server (PTS) with 15 Prioritized Sources
` Up to 52 I/O Lines
` 3-phase Complementary Waveform Generator
` 8-channel 8- or 10-bit A/D with Sample and Hold
` 2-channel UART
` Event Processor Array (EPA) with 2 Highspeed Capture/Compare Modules and 4 Highspeed Compare-only Modules
` Two Programmable 16-bit Timers with Quadrature Counting Inputs
` Two Pulse-width Modulator (PWM) Outputs with High Drive Capability
` Flexible 8- or 16-bit External Bus
` 1.75 s 16 * 16 Multiply
` 3 s 32/16 Divide
` Extended Temperature Available
` Idle and Powerdown Modes
` Watchdog Timer

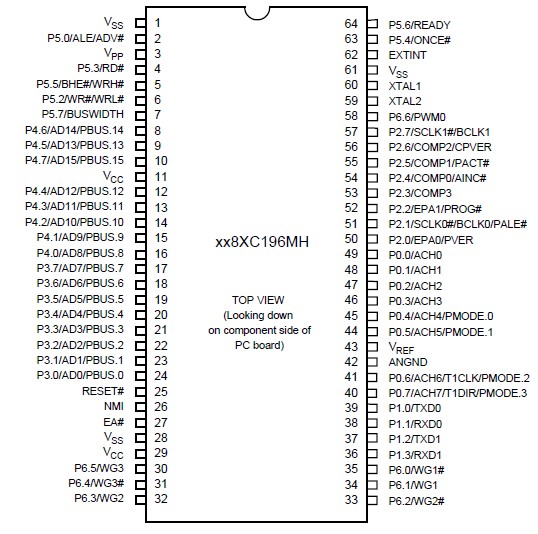

Pinout




Specifications

Storage Temperature ................................ 65to + 150
Ambient Temperature
under Bias.............................................. .... 40 to + 85
Voltage from VPP or EA# to
VSS or ANGND (Note 1) ...................... .. 0.5 V to + 13.0 V
Voltage with respect to
VSS or ANGND (Note 1) ........................   0.5 V to + 7.0 V
(This includes VPP on ROM and CPU devices.)
Power Dissipation ......................................................  1.5 W
(based on package heat transfer limitations, not device
power consumption)
OPERATING CONDITIONS*
TA (Ambient Temperature Under Bias) ......... 40 to + 85
VCC (Digital Supply Voltage) .......................  4.50 V to 5.50 V
VREF (Analog Supply Voltage) ......................4.50 V to 5.50 V
FOSC (Oscillator Frequency) (Note 2) .........8 MHz to 16 MHz
NOTES:
1. ANGND and VSS should be at nominally the same potential.
2. Testing is performed down to 8 MHz, although the device is static by design and will typically  operate below 1 Hz.


Description

The 8XC196MH is a member of Intel's family of 16-bit MCS® 96 microcontrollers. It is designed primarily to control three-phase AC induction and DC brushless motors.8XC196MH features an enhanced three-phase waveform generator specifically designed for use in "inverter" motor-control applications. This peripheral provides pulsewidth modulation and three-phase sine wave generation with minimal CPU intervention. It generates three complementary non-overlapping PWM pulses with resolutions of 0.125 s (edge triggered) or 0.250 s (centered).

The 8XC196MH has two dedicated serial port peripherals, allowing less software overhead. The watchdog timer can be programmed with one of four time options.

The 8XC196MH is available as the 80C196MH, which does not have on-chip ROM, the 87C196MH, which contains 32 Kbytes of on-chip OTPROM* or factory programmed ROM, and the 83C196MH, which contains 32 Kbytes of factory programmed MASK ROM. It is available in 84-lead PLCC, 80-lead Shrink EIAJ/QFP, and 64-lead SDIP. The 64-lead package does not contain pins for the P5.1/INST and P6.7/PWM1 signals.Operational characteristics are guaranteed over the temperature range of 40°C to + 85°C.

Parameters:

Technical/Catalog Information	N80C196MD
Vendor	Intel
Category	Integrated Circuits (ICs)
Program Memory Size	-
RAM Size	488 x 8
Number of I /O	64
Package / Case	84-PLCC
Speed	16MHz
Controller Series	80C
Oscillator Type	External
Packaging	Tube
Program Memory Type	ROMless
EEPROM Size	-
Core Processor	MCS 96
Data Converters	A/D 14x10b
Core Size	16-Bit
Operating Temperature	0°C ~ 70°C
Connectivity	-
Peripherals	PWM, WDT
Voltage - Supply (Vcc/Vdd)	4.5 V ~ 5.5 V
RoHS Status	RoHS Non-Compliant
