Part Number: NB100ELT23L
Description: The NB100ELT23L is a dual differential LVPECL/LVDS to LVTTL translator. Because LVPECL (Positive ECL) ...
- Table of contents:
NB100ELT23L
-
Suppliers
DataSheet
General Description
NB100ELT23L General Description
The NB100ELT23L is a dual differential LVPECL/LVDS to LVTTL translator. Because LVPECL (Positive ECL) or LVDS levels are used, only +3.3 V and ground are required. The small outline 8-lead package and the dual gate design of the ELT23L makes it ideal for applications which require the translation of a clock and a data signal.
The ELT23L is available in only the ECL 100K standard. Since there are no LVPECL outputs or an external VBB reference, the ELT23L does not require both ECL standard versions. The LVPECL inputs are differential. Therefore, the NB100ELT23L can accept any standard differential LVPECL/LVDS input referenced from a VCC of +3.3 V.
NB100ELT23L Maximum Ratings
|
Symbol |
Parameter |
Condition 1 |
Condition 2 |
Rating |
Unit |
|
VCC |
Power Supply |
GND = 0 V |
3.8 |
V | |
|
VI |
Input Voltage |
GND = 0 V |
VI VCC |
3.8 |
V |
|
Iout |
Output Current | Continuous Surge |
50 100 |
mA mA | |
|
TA |
Operating Temperature Range |
-40 to +85 |
|||
|
Tstg |
Storage Temperature Range |
−65 to +150 |
|||
|
JA |
Thermal Resistance (Junction−to−Ambient) |
0 lfpm 500 lfpm |
SO−8 SO−8 |
190 130 |
/W /W |
|
JC |
Thermal Resistance (Junction−to−Case) |
Standard Board |
SO−8 |
41to44 |
/W |
|
JA |
Thermal Resistance (Junction−to−Ambient) |
0 lfpm 500 lfpm |
TSSOP−8 TSSOP−8 |
185 140 |
/W /W |
|
JC |
Thermal Resistance (Junction−to−Case) |
Standard Board |
TSSOP−8 |
41to44 |
/W |
|
Tsol |
Wave Solder |
<2 to 3 sec @ 248°C |
265 |
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device unctional operation is not implied, damage may occur and reliability may be affected.
NB100ELT23L Features
• 2.1 ns Typical Propagation Delay
• Maximum Operating Frequency > 160 MHz
• 24 mA LVTTL Outputs
• Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V
• Q Output Will Default LOW with Inputs Open or at GND
• Pb−Free Packages are Available*
• Maximum Operating Frequency > 160 MHz
• 24 mA LVTTL Outputs
• Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V
• Q Output Will Default LOW with Inputs Open or at GND
• Pb−Free Packages are Available*

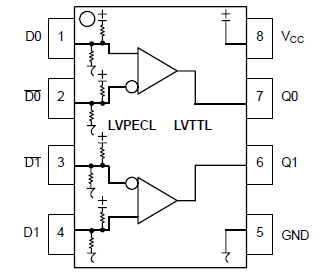

NB100ELT23L Connection Diagram
NB100ELT23L
