NBSG14

Features: · Maximum Input Clock Frequency up to 12 GHz Typical· Maximum Input Data Rate up to 12 Gb/s Typical· 30 ps Typical Rise and Fall Times· 125 ps Typical Propagation Delay· RSPECL Output with Operating Range: VCC = 2.375 V to 3.465 VEEwith V = 0 V· RSNECL Output with RSNECL or NECL Inputs w...

product image

NBSG14 Picture
See larger image
SeekIC No. : 004432747 Detail

NBSG14: Features: · Maximum Input Clock Frequency up to 12 GHz Typical· Maximum Input Data Rate up to 12 Gb/s Typical· 30 ps Typical Rise and Fall Times· 125 ps Typical Propagation Delay· RSPECL Output with...

NBSG14 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NBSG14
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Maximum Input Clock Frequency up to 12 GHz Typical
· Maximum Input Data Rate up to 12 Gb/s Typical
· 30 ps Typical Rise and Fall Times
· 125 ps Typical Propagation Delay
· RSPECL Output with Operating Range: VCC = 2.375 V to 3.465 VEEwith V = 0 V
· RSNECL Output with RSNECL or NECL Inputs with
   Operating Range: VCC= 0 V with V EE = ?2.375 V to ?3.465 V
· RSECL Output Level (400 mV Peak?to?Peak Output), Differential Output
· 50  Internal Input Termination Resistors
· Compatible with Existing 2.5 V/3.3 V LVEP, EP, and LVEL Devices

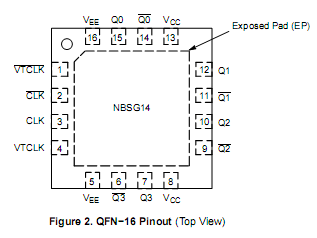

Pinout

Connection Diagram


Specifications

Symbol
Parameter
 Condition 1
Rating
Units
VCC
 LVPECL Power Supply VEE = 0 V
3.6
V
VEE
 NECL Power Supply VCC = 0 V
-3.6
V
VI
 Positive Input
Negative Input		 VEE = 0 V
VCC = 0 V
3.6
-3.6
V
V
VINPP
 Differential Input Voltage |CLK-CLK| VCC - VEE 2.8
VCC-VEE< 2.8
2.8
|VCC-VEE|
V
IIN
Input Current Through R (50 Resistor)
T		 Static
Surge
45
80
mA
mA
Iout
 Output Current Continuous
Surge
25
50
mA
mA
TA
 Operating Temperature Range 16 FCBGA
16 QFN
-40 to +70
-40 to +85
Tstg
 Storage Temperature Range
-65 to +150
JA
 Thermal Resistance (Junction?to?Ambient)
(Note 3)		 0 LFPM
500 LFPM
0 LFPM
500 LFPM
108
86
41.6
35.2
/W
/W
/W
/W
JC
 Thermal Resistance (Junction?to?Case) 2S2P (Note 3)
2S2P (Note 4)
5
4.0
/W
/W
Tsol
 ave Solder < 15 Seconds
225

2.Maximum Ratings are those values beyond which device damage may occur.
3.JEDEC standard 51?6, multilayer board ? 2S2P (2 signal, 2 power).
4.JEDEC standard multilayer board ? 2S2P (2 signal, 2 power) with 8 filled thermal vias under exposed pad.


Description

The NBSG14 is a 1?to?4 clock/data distribution chip, optimized for ultra?low skew and jitter. Inputs incorporate internal 50  termination resistors and accept NECL (Negative ECL), PECL (Positive ECL), LVTTL, LVCMOS, CML, or LVDS. Outputs are RSECL (Reduced Swing ECL), 400 mV.
