Product Details

Description



Features:

`Space saving SOT23 or SC70 5-lead package
` High speed: tPD 3.5 ns typ
` Low Quiescent Power: ICC < 1 A
` Balanced Output Drive: 2 mA IOL, −2 mA IOH
` Broad VCC Operating Range: 2V−6V
` Balanced Propagation Delays
` Specified for 3V operation

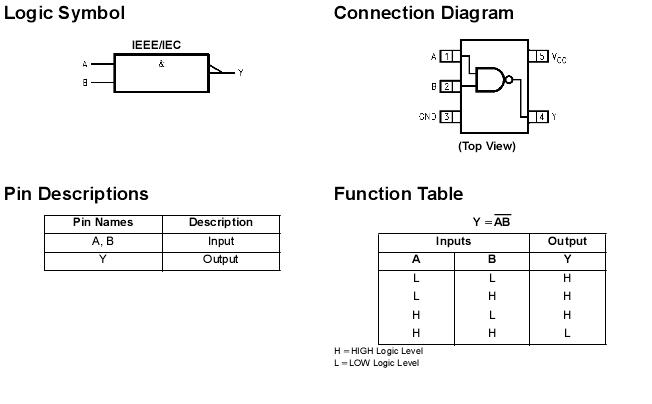

Pinout






Specifications

Supply Voltage (VCC) ......................−0.5V to +7.0V
DC Input Diode Current (IIK)
@VIN −0.5V .............................−20 mA
@VIN VCC + 0.5V ........................... +20 mA
DC Input Voltage (VIN) ...................−0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
@VOUT < −0.5V .............................−20 mA
@VOUT > VCC + 0.5V........................... +20 mA
DC Output Voltage (VOUT) ..................−0.5V to VCC+ 0.5V
DC Output Source
or Sink Current (IOUT) .........................±12.5 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND) .......................±25 mA
Storage Temperature (TSTG) .................−65°C to +150°C
Junction Temperature (TJ)......................... 150°C
Lead Temperature (TL);
(Soldering, 10 seconds).......................... 260°C
Power Dissipation (PD) @ +85°C
SOT23-5 ................................. 200 mW
SC70-5 .................................. 150 mW




Description

The NC7S00 is a single 2-Input high performance CMOS NAND Gate. Advanced Silicon Gate CMOS fabrication in NC7S00 assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails. Three stages of gain between inputs and output assures high noise immunity and reduced sensitivity to input edge rate.
