General Description
NCN6001 General Description
The NCN6001 is an integrated circuit dedicated to the smart card interface applications. The device handles any type of smart card through a simple and flexible microcontroller interface. On top of that, thanks to the built-in chip select pin, several couplers can be connected in parallel.
The device is particularly suited for low cost, low power applications, with high extended battery life coming from extremely low quiescent current.
NCN6001 Maximum Ratings
| Rating |
Symbol |
Value |
Unit |
| Power Supply Voltage |
VCC |
6.0 |
V |
| Power Supply Current Note: This current represents the maximum peak current the pin can sustain, not the NCN6001 average consumption. |
Ibat |
500 |
mA |
| Power Supply Current |
ICC |
150 (Internally Limited) |
mA |
| Digital Input Pins |
Vin |
-0.5 V < Vin < VCC +0.5 V, but < 6.0 V |
V |
| Digital Input Pins |
Iin |
±5.0 |
mA |
| Digital Output Pins |
Vout |
-0.5 V < Vin < VCC +0.5 V, but < 6.0 V |
V |
| Digital Output Pins |
Iout |
±10 |
mA |
| Card Interface Pins |
Vcard |
-0.5 V < Vcard < CRD_VCC +0.5 V |
V |
| Card Interface Pins, excepted CRD_CLK |
Icard |
15 (Internally Limited) |
mA |
| Inductor Current |
ILout |
500 (Internally Limited) |
mA |
| ESD Capability (Note 2) Standard Pins Card Interface Pins CRD_DET |
VESD |
2.0 8.0 4.0 |
kV kV kV |
| TSSOP-20 Package Power Dissipation @ Tamb = +85°C Thermal Resistance, Junction- to-Air (RJA) |
PDS RJA |
320 125 |
mW °C/W |
| Operating Ambient Temperature Range |
TA |
-25 to +85 |
°C |
| Operating Junction Temperature Range |
TJ |
-25 to +125 |
°C |
| Maximum Junction Temperature (Note 3) |
TJmax |
+150 |
°C |
| Storage Temperature Range |
Tstg |
-65 to +150 |
°C |
2. Human Body Model, R = 1500 , C = 100 pF.
3. Absolute Maximum Rating beyond which damage to the device may occur.
NCN6001 Features
• 100% Compatible with ISO 7816-3, EMV and GIE-CB Standards
• Fully GSM Compliant
• Wide Battery Supply Voltage Range: 2.7 < VCC < 5.5 V
• Programmable CRD_VCC Supply Handles 1.8 V, 3.0 V or 5.0 V Card Operation
• Programmable Rise and Fall Card Clock Slopes
• Programmable Card Clock Divider
• Built-in Chip Select Logic Allows Parallel Coupling Operation
• ESD Protection on Card Pins (8.0 kV, Human Body Model)
• Supports up to 40 MHz Input Clock
• Built-in Programmable CRD_CLK Stop Function Handles Run or Low State
• Programmable CRD_CLK Slopes to Cope with Wide Operating Frequency Range
• Fast CRD_VCC Turn-on and Turn-off Sequence
• Fully GSM Compliant
• Wide Battery Supply Voltage Range: 2.7 < VCC < 5.5 V
• Programmable CRD_VCC Supply Handles 1.8 V, 3.0 V or 5.0 V Card Operation
• Programmable Rise and Fall Card Clock Slopes
• Programmable Card Clock Divider
• Built-in Chip Select Logic Allows Parallel Coupling Operation
• ESD Protection on Card Pins (8.0 kV, Human Body Model)
• Supports up to 40 MHz Input Clock
• Built-in Programmable CRD_CLK Stop Function Handles Run or Low State
• Programmable CRD_CLK Slopes to Cope with Wide Operating Frequency Range
• Fast CRD_VCC Turn-on and Turn-off Sequence
NCN6001 Typical Application
• E-Commerce Interface
• Automatic Teller Machine (ATM) Smart Card
• Point of Sales (POS) System
• Pay TV System
• Automatic Teller Machine (ATM) Smart Card
• Point of Sales (POS) System
• Pay TV System

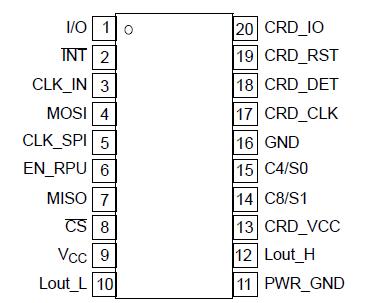

NCN6001 Connection Diagram
NCN6001
PDF/DataSheet Download
- Datasheet: NCN6001
- File Size: 350613 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
