NCN6004A

Features: • Separated, Built-in DC/DC Converters Supply VCC Power to External Cards• 100% Compatible with ISO 7816-3, EMV and GIE-CB Standards• Fully GSM Compliant• Individually Programmable ISO/EMV Clock Generator• Built-in Programmable CRD_CLK Stop Function Handles ...

product image

NCN6004A Picture
See larger image
SeekIC No. : 004432912 Detail

NCN6004A: Features: • Separated, Built-in DC/DC Converters Supply VCC Power to External Cards• 100% Compatible with ISO 7816-3, EMV and GIE-CB Standards• Fully GSM Compliant• Individua...

NCN6004A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NCN6004A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Separated, Built-in DC/DC Converters Supply VCC Power to External Cards
• 100% Compatible with ISO 7816-3, EMV and GIE-CB Standards
• Fully GSM Compliant
• Individually Programmable ISO/EMV Clock Generator
• Built-in Programmable CRD_CLK Stop Function Handles Run or High/Low State
• Programmable CRD_CLK Slopes to Cope with Wide Operating Frequency Range
• Programmable Independent VCC Supply for Each Smart Card
• Support up to 65 mA VCC Supply to Each ISO/EMV Card
• Multiple NCN6004A Parallel Operation on a Shared Bus
• 8 kV/Human Model ESD Protection on Each Interface Pin
• Provides C4/C8 Channels
• Provides 1.80 V, 3.0 V or 5.0 V Card Supply Voltages


Application

• Set Top Box Decoder
• ATM Multi Systems, POS, Handheld Terminals
• Internet E-commerce PC Interface
• Multiple Self Serve Automatic Machines
• Wireless Phone Payment Interface
• Automotive Operating Time Controller


Pinout

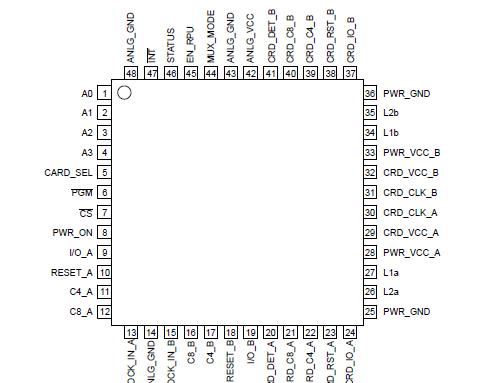

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Power Supply Input Supply Voltage
VCC
6
V
Vin
Digital Input Pins
-0.5 V < Vin< VCC +0.5 V,
but < 6.0 V
V
Power Supply Input Current
IVCC
500
mA
Digital Input Pins
Vin
In
-0.5 < VCC or VCC < 5.5
± 5
V
mA
Digital Output Pins
Vout
Iout
-0.5 < VCC or VCC < 5.5
±10
V
mA
Card Interface Pins
Vcard
Icard
-0.5V < Vcard < CRD_VCC +0.5V
15 mA (internally limited)
V
mA
ESD Capability, Human Body Model (Note 3)
Standard Pins
Card Interface Pins (Card A or B)
VESD
2
8
kV
kV
TQFP48
Power Dissipation @ Tab = +85°C
Thermal Resistance Junction-to-Air
PD
RJA
800
50
mW
°C/W
Operating Ambient Temperature Range
TA
-40 to +85
°C
Operating Junction Temperature Range
TJ
-40 to +125
°C
Maximum Junction Temperature (Note 4)
TJmax
+150
°C
Storage Temperature Range
Tag
-65 to +150
°C
1. Maximum Electrical Ratings are defined as those values beyond which damage(s) to the device may occur at TA = +25°C.
2. Human Body Model, R = 1500 , C = 100 pF.
3. Absolute Maximum Rating beyond which damage(s) to the device may occur.


Description

The NCN6004A is an interface IC dedicated for Secured Access Module reader/writer applications. It allows the management of two external ISO/EMV cards thanks to a simple and flexible microcontroller interface. Several NCN6004A interfaces can share a single data bus, assuming the external MPU provides the right Chip Select signals to identify each IC connected on the bus. A built in accurate protection system guarantees timely and controlled shutdown in the case of external error conditions.

On top of that, the NCN6004A can independently handle the power supply, in the range 2.7 V to 5.0 V input voltage, provided to each external Smart Card. The interface monitors the current flowing into each Smart Card, a flag being set in the case of overload.
