NDH8504P

Features:

`-2.7 A, -30 V. R<sub>DS(ON)</sub> = 0.07 @ V<sub>GS</sub> = -10 V R<sub>DS(ON)</sub> = 0.115 @ V<sub>GS</sub> = -4.5 V.
`Proprietary SuperSOTTM-8 package design using copper lead frame for superior thermal and electrical capabilities.
`High density cell design for extremely low R<sub>DS(ON).</sub>
`Exceptional on-resistance and maximum DC current capability.

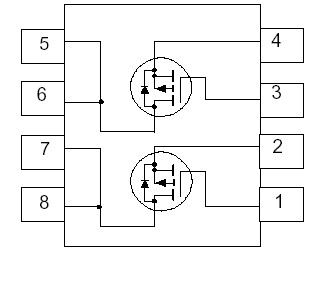

Pinout




Specifications

Symbol	Parameter		NDH8504P	Units
VDSS VGSS	Drain-Source Voltage Gate-Source Voltage - Continuous		-30 ±20 -2.7 -8 0.8 -55 to 150	V V A W °C
ID	Drain Current Continuous Pulsed	(Note 1)
PD	Maximum Power Dissipation	(Note 1 )
TJ,TSTG	Operating and Storage Temperature Range

THERMAL CHARACTERISTICS

RJA RJC

Thermal Resistance, Junction-to-Ambient Thermal Resistance, Junction-to-Case

(Note 1) (Note 1)

156 40

°C/W °C/W

Description

SuperSOT^TM-8 P-Channel enhancement mode power field effect transistors NDH8504P are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. NDH8504P is particularly suited for low voltage applications such as notebook computer power management and other battery powered circuits where fast high-side switching, and low in-line power loss are needed in a very small outline surface mount package.
