Purchase NE5234, In-stock NE5234 From SeekIC.
MFG:PHILIPS D/C:DIP
Part Number: NE5234
MFG: PHILIPS
D/C: DIP
Description: The NE/SA5234 is a matched, low voltage, high performance quad operational amplifier. Among its unique...
- Table of contents:
NE5234
-
Suppliers
DataSheet
General Description
NE5234 General Description
The NE/SA5234 is a matched, low voltage, high performance quad operational amplifier. Among its unique input and output characteristics is the capability for both input and output rail-to-rail operation, particularly critical in low voltage applications. The output swings to less than 50mV of both rails across the entire power supply range. The NE/SA5234 is capable of delivering 5.5V peak-to-peak across a 600W load and will typically draw only 700mA per amplifier. The bandwidth is 2.5MHz and the 1% settling time is 1.4ms.
NE5234 Maximum Ratings
|
SYMBOL |
PARAMETER |
RATING |
UNITS |
|
VCC |
Single supply voltage |
7 |
V |
|
VESD
|
ESD protection voltage at any pin5 human body model |
2000 |
V |
| robot model |
200 |
V | |
|
VS |
Dual supply voltage |
+3.5 |
V |
|
VDP |
Voltage at any device pin1 |
VS + 0.5 |
V |
|
IDP |
Current into any device pin1 |
+ 50 |
mA |
|
VIN |
Differential input voltage2 |
0.5 |
V |
|
VCM |
Common-mode input voltage (positive) |
VCC + 0.5 |
V |
|
VCM |
Common-mode input voltage (negative) |
VEE - 0.5 |
V |
|
PD |
Power dissipation3 |
500 |
mW |
|
TJ |
Operating junction temperature3 |
+150 |
°C |
|
VSC |
Supply voltage allowing indefinite output short circuit to either rail3,4 |
7 |
V |
|
TSTG |
Storage temperature range |
-65 to +150 |
°C |
|
TSOLD |
Lead soldering temperature (10sec max) |
+300 |
°C |
|
JA
|
Thermal impedance 14 pin Plastic DIP |
80 |
°C/W |
| 14 pin Plastic SO |
115 |
°C/W |
NOTES:
1. Each pin is protected by ESD diodes. The voltage at any pin is limited by the ESD diodes.
2. The differential input of each amplifier is limited by two internal diodes, connected in parallel and opposite to each other. For more differential input range, use differential resistors in series with the input pins.
3. The maximum operating junction temperature is +150°C. At elevated temperatures, devices must be derated according to the package thermal resistance and device mounting conditions. Derates above +25°C: F package at 6.7mW/°C; N package at 9.5mW/°C; D packageat 6.25mW/°C.
4. Simultaneous short circuits of two or more amplifiers to the positive or negative rail can exceed the power dissipation ratings and causeeventual destruction of the device.
5. Guaranteed by design.
NE5234 Features
• Wide common-mode input voltage range: 250mV beyond both ails
• Output swing within 50mV of both rails
• Functionality to 1.8V typical
• Low current consumption: 700mA per amplifier
• +15mA output current capability
• Unity gain bandwidth: 2.5MHz
• Slew rate: 0.8V/ms
• Low noise: 25nV//Hz
• Electrostatic discharge protection
• Short-circuit protection
• Output inversion prevention
• Output swing within 50mV of both rails
• Functionality to 1.8V typical
• Low current consumption: 700mA per amplifier
• +15mA output current capability
• Unity gain bandwidth: 2.5MHz
• Slew rate: 0.8V/ms
• Low noise: 25nV//Hz
• Electrostatic discharge protection
• Short-circuit protection
• Output inversion prevention
NE5234 Typical Application
• Automotive electronics
• Signal conditioning and sensing amplification
• Portable instrumentation
Test and measurement
Medical monitors and diagnostics
Remote meters
• Audio equipment
• Security systems
• Communications
Pagers
Cellular telephone
LAN
5V Datacom bus
• Error amplifier in motor drives
• Transducer buffer amplifier
• Signal conditioning and sensing amplification
• Portable instrumentation
Test and measurement
Medical monitors and diagnostics
Remote meters
• Audio equipment
• Security systems
• Communications
Pagers
Cellular telephone
LAN
5V Datacom bus
• Error amplifier in motor drives
• Transducer buffer amplifier

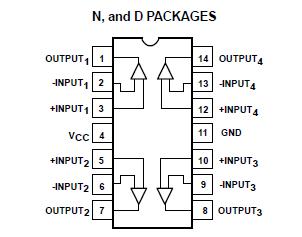

NE5234 Connection Diagram
NE5234
