Part Number: NE5241
MFG: PHILIPS
Package Cooled: DIP
Description: The NE5241 is a complete stereo digital to audio converter for the Dolby ADM digital audio system, whi...
- Table of contents:
NE5241
-
Suppliers
DataSheet
General Description
NE5241 General Description
The NE5241 is a complete stereo digital to audio converter for the Dolby ADM digital audio system, which allows CD quality stereo audio to be delivered with data rates on the order of 400 to 600kb/s.
The NE5241 is intended for use in high quality consumer digital audio equipment for the reproduction of broadcast (or pre-recorded) digital audio. The IC contains channel de-multiplexing data input latches, control signal filter drivers and buffers, variable gain integrators, and variable de-emphasis filters. Precision, temperature compensated voltage reference circuitry assures accurate performance over temperature. The IC is implemented in a bipolar process to achieve low noise, low distortion, and wide dynamic range. The NE5241 is an improved version of the NE5240, which has been discontinued.
NE5241 Maximum Ratings
| SYMBOL | PARAMETER |
RATING |
UNIT |
| VCC | Analog supply voltage |
+15 |
V |
| VDD | Logic supply voltage |
+7 |
V |
| TA | Operating ambient temperature range |
0 to +70 |
°C |
| TSTG | Storage temperature range |
65 to +150 |
°C |
| TJ | Junction temperature |
65 to +150 |
°C |
| TSOLD | Lead temperature (soldering 60 sec) |
+300 |
°C |
| Thermal impedance | |||
| JA | N package |
48 |
°C/W |
| D package |
70 |
°C/W |
NE5241 Features
• Wide dynamic range: >95dB
• Low distortion: <0.1% @ 1kHz, 0dB
• TTL, CMOS compatible logic inputs
• Wide bandwidth: DC to > 20kHz
• Complete decoder implementation in one IChip
• Low distortion: <0.1% @ 1kHz, 0dB
• TTL, CMOS compatible logic inputs
• Wide bandwidth: DC to > 20kHz
• Complete decoder implementation in one IChip
NE5241 Typical Application
• High quality digital audio transmission systems
• Pre-recorded digital audio
• Satellite delivered digital audio
• Cable TV delivered digital audio
• Microwave delivered digital audio
• Terrestrial delivered digital audio
• Digital audio for advanced television sound
• Pre-recorded digital audio
• Satellite delivered digital audio
• Cable TV delivered digital audio
• Microwave delivered digital audio
• Terrestrial delivered digital audio
• Digital audio for advanced television sound

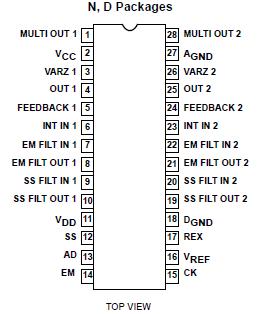

NE5241 Connection Diagram
NE5241
