Part Number: NE5521
MFG: PHILIP
D/C: DIP
Description: The NE/SA/SE5521 is a signal conditioning circuit for use with Linear Variable Differential Transforme...
- Table of contents:
NE5521
-
Suppliers
DataSheet
General Description
NE5521 General Description
The NE/SA/SE5521 is a signal conditioning circuit for use with Linear Variable Differential Transformers (LVDTs) and Rotary Variable Differential Transformers (RVDTs). The chip includes a low distortion, amplitude-stable sine wave oscillator with programmable frequency to drive the primary of the LVDT/RVDT, a synchronous demodulator to convert the LVDT/RVDT output amplitude and phase to position information, and an output amplifier to provide mplification and filtering of the demodulated signal.
NE5521 Maximum Ratings
| SYMBOL | PARAMETER |
RATING |
UNIT |
| VCC | Supply voltage |
+20 |
V |
| Split supply voltage |
±10 |
V | |
| TA | Operating temperature range | ||
| NE5521 |
0 to 70 |
°C | |
| SA5521 |
40 to +85 |
°C | |
| SE5521 |
55 to +125 |
°C | |
| TSTG | Storage temperature range |
65 to +125 |
°C |
| PD | Power dissipation1 |
910 |
mW |
1. For derating, see typical power dissipation versus load curves (Figure 1).
NE5521 Features
• Low distortion
• Single supply 5V to 20V, or dual supply ±2.5V to ±10V
• Oscillator frequency 1kHz to 20kHz
• Capable of ratiometric operation
• Low power consumption (182mV typ)
• Single supply 5V to 20V, or dual supply ±2.5V to ±10V
• Oscillator frequency 1kHz to 20kHz
• Capable of ratiometric operation
• Low power consumption (182mV typ)
NE5521 Typical Application
• LVDT signal conditioning
• RVDT signal conditioning
• LPDT signal conditioning
• Bridge circuits
• RVDT signal conditioning
• LPDT signal conditioning
• Bridge circuits

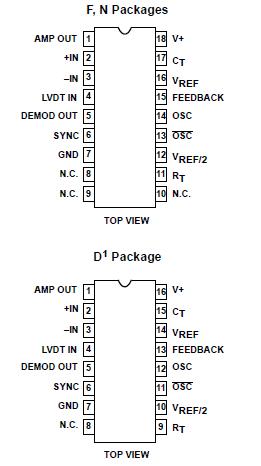

NE5521 Connection Diagram
NE5521
PDF/DataSheet Download
- Datasheet: NE5521
- File Size: 47817 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
