Part Number: NE5532A



MFG: PHI

Package Cooled: 3.9mm



Description: The 5532 is a dual high-performance low noise operational amplifier. Compared to most of the standard operational ampli...


Urgent Purchase

NE5532A General Description


The 5532 is a dual high-performance low noise operational amplifier. Compared to most of the standard operational amplifiers, such as the 1458, it shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths.

This makes the device especially suitable for application in high-quality and professional audio equipment, instrumentation and control circuits, and telephone channel amplifiers. The op amp is internally compensated for gains equal to one. If very low noise is of prime importance, it is recommended that the 5532A version be used because it has guaranteed noise voltage specifications.

NE5532A Maximum Ratings

SYMBOL PARAMETER RATING UNIT
VS Supply voltage ±22 V
VIN Input voltage ±VSUPPLY V
VDIFF Differential input voltage1 ±0.5 V
TA Operating temperature range
                             SA5532/A
                              NE5532/A
                              SE5532/A
40 to +85
0 to 70
-55 to +125
°C
°C
°C
TSTG Storage temperature -65 to +150 °C
TJ Junction temperature 150 °C
PD Maximum power dissipation,
TA=25°C (still-air)2
8    D8 package
8    N package
8    FE package
16  D package

780
1200
1000
1200

mW
mW
mW
mW
TSOLD Lead soldering temperature (10sec max) 300 °C

NE5532A Features

• Small-signal bandwidth: 10MHz
• Output drive capability: 600W, 10VRMS
• Input noise voltage: 5nV /Hz (typical)
• DC voltage gain: 50000
• AC voltage gain: 2200 at 10kHz
• Power bandwidth: 140kHz
• Slew rate: 9V/s
• Large supply voltage range: ±3 to ±20V
• Compensated for unity gain

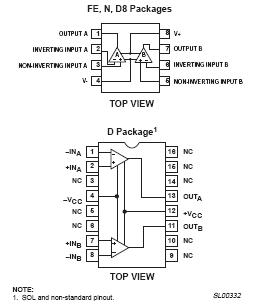

NE5532A Connection Diagram

NE5532A Connection Diagram
