General Description
NE556-1 General Description
Both the 556 and 556-1 Dual Monolithic timing circuits are highly stable controllers capable of producing accurate time delays or oscillation. The 556 and 556-1 are a dual 555. Timing is provided by an external resistor and capacitor for each timing function. The two timers operate independently of each other, sharing only VCC and ground. The circuits may be triggered and reset on falling waveforms. The output structures may sink or source 200mA.
NE556-1 Maximum Ratings
| SYMBOL | PARAMETER |
RATING |
UNIT |
| VCC | Supply voltage NE/SA556, NE556-1 |
+16 |
V |
| SE556 |
+18 |
V | |
| PD | Maximum allowable power dissipation1 |
800 |
mW |
| TA | Operating temperature range | ||
| NE556-1, NE556 |
0 to +70 |
°C | |
| SA556 |
-40 to +85 |
°C | |
| SE556 |
-55 to +125 |
°C | |
| TSTG | Storage temperature range |
-65 to +150 |
°C |
| TSOLD | Lead soldering temperature (10sec max) |
+300 |
°C |
NOTES:
1. The junction temperature must be kept below 125°C for the D package and below 150°C for the N and F packages. At ambient temperatures above 25°C, where this limit would be exceeded, the Maximum Allowable Power Dissipation must be derated by the following:
D package 115°C/W
N package 80°C/W
F package 100°C/W
NE556-1 Features
• Turn-off time less than 2ms (556-1)
• Maximum operating frequency >500kHz (556-1)
• Timing from microseconds to hours
• Replaces two 555 timers
• Operates in both astable and monostable modes
• High output current
• Adjustable duty cycle
• TTL compatible
• Temperature stability of 0.005%/°C
• SE556-1 compliant to MIL-STD or JAN
• Maximum operating frequency >500kHz (556-1)
• Timing from microseconds to hours
• Replaces two 555 timers
• Operates in both astable and monostable modes
• High output current
• Adjustable duty cycle
• TTL compatible
• Temperature stability of 0.005%/°C
• SE556-1 compliant to MIL-STD or JAN
NE556-1 Typical Application
• Precision timing
• Sequential timing
• Pulse shaping
• Pulse generator
• Missing pulse detector
• Tone burst generator
• Pulse width modulation
• Time delay generator
• Frequency division
• Touch-Tone[encoder
• Industrial controls
• Pulse position modulation
• Appliance timing
• Traffic light control
• Sequential timing
• Pulse shaping
• Pulse generator
• Missing pulse detector
• Tone burst generator
• Pulse width modulation
• Time delay generator
• Frequency division
• Touch-Tone[encoder
• Industrial controls
• Pulse position modulation
• Appliance timing
• Traffic light control

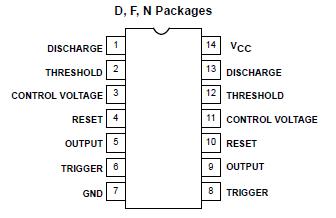

NE556-1 Connection Diagram
NE556-1
PDF/DataSheet Download
- Datasheet: NE556-1
- File Size: 65529 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
