NET2890

Features: • USB Specification Version 1.1 Compliant• Bridges between a Processor-Independent local bus and a USB bus• USB device bandwidth of up to 12Mb/sec• Four Configurable Endpoints, in addition to Endpoint 0• Each endpoint can be Isochronous, Bulk, or Interrupt, ...

product image

NET2890 Picture
See larger image
SeekIC No. : 004433586 Detail

NET2890: Features: • USB Specification Version 1.1 Compliant• Bridges between a Processor-Independent local bus and a USB bus• USB device bandwidth of up to 12Mb/sec• Four Configurabl...

NET2890 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NET2890
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• USB Specification Version 1.1 Compliant
• Bridges between a Processor-Independent local bus and a USB bus
• USB device bandwidth of up to 12Mb/sec
• Four Configurable Endpoints, in addition to Endpoint 0
• Each endpoint can be Isochronous, Bulk, or Interrupt, as well as In or Out
• One 128 byte FIFO attached to each endpoint allows concurrency
• Separate 16 byte FIFO for Control Endpoint 0
• Supports local CPU or DMA data transfers
• Automatic retry of failed packets
• Diagnostic register allows forced USB errors
• Atomic operation to set and clear status bits simplifies software
• Simulated disconnect allows re-enumeration
• Low power CMOS in 48 Pin Plastic QFP Package
• 3.3V operating voltage, 3.3V / 5.0 V dual-voltage I/O interface
• Pin compatible with NET2888


Pinout

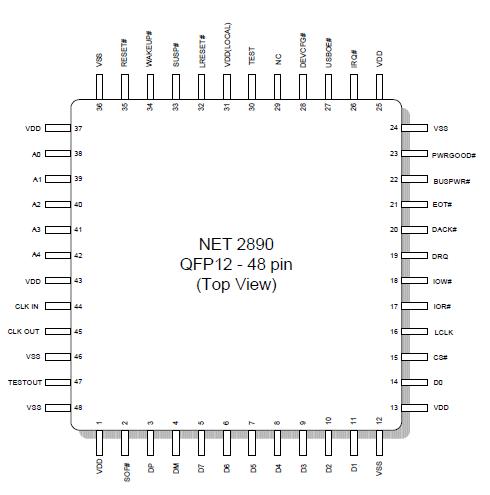

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Min
Max
Unit
VDDC
 Core/USB Supply Voltage With Respect to Ground
-0.5
4.6
V
VDDL
 Local Supply Voltage (+5V) With Respect to Ground
-0.5
7.0
V
VI
 DC input voltage With Respect to Ground
-0.5
VDD+0.5
V
IOUT
 DC Output Current, per pin
-25
25
mA
TSTG
 Storage Temperature No bias
-65
150
° C
TAMB
 Ambient temperature Under bias
-65
150
° C
PD
 Power Dissipation Under bias
mW
VESD
 ESD Rating R = 1.5K, C = 100pF
2
KV



Description

The NET2890 is a USB function device, and as a result is always a slave to the USB host. The bit and packet level protocols, as well as the electrical interface of it, conform to USB Specification Version 1.0. All USB data transfers to and from the NET2890 USB port are initiated by the USB host. The NET2890 can be configured for up to 4 endpoints, in addition to Endpoint 0. Each endpoint can be an isochronous, bulk or interrupt type. The configuration registers are used to program the characteristics of each endpoint.
