NJG1110PB1 General Description


The NJG1110PB1 is a dual band low noise amplifier (2 input 2 output) GaAs MMIC for 800MHz and 1500MHz band. The band switching between 800MHz and 1500MHz is established by one bit control signal by using built-in inverter circuit.

An ultra small & thin FFP12 (Flip-Chip Fine package) package is adopted.

NJG1110PB1 Maximum Ratings

PARAMETERS
SYMBOL
CONDITIONS
RATINGS
UNITS
Operating voltage
VDD
5.0
V
Control voltage
VCTL
5.0
V
Inverter supply voltage
VINV
5.0
V
Input power
Pin
VDD=2.8V
+15
dBm
Power dissipation
PD
300
mW
Operating temperature
Topr
-40~+85
°C
Storage temperature
Tstg
-55~+125
°C

NJG1110PB1 Features

·Low voltage operation +2.8V typ.
·Low current consumption 2.7mA typ.
·Low control current 20uA typ.
·High gain 18dB typ. @f=820MHz 16dB typ. @f=1490MHz
·Low noise figure 1.2dB typ. @f=820MHz 1.1dB typ. @f=1490MHz
·High output IP3 +10dBm typ. @f=820MHz +13dBm typ. @f=1490MHz
·Ultra small & ultra thin package FFP12-B1 (Package size: 2.0x2.0x0.85mm)

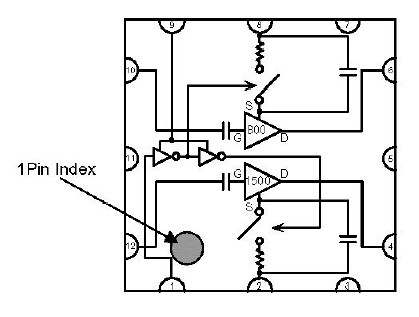

NJG1110PB1 Connection Diagram
