Part Number: NJG1523KB2
Description: NJG1523KB2 is a SPDT switch IC featured low insertion loss, medium handling power and high isolation.This de...
- Table of contents:
NJG1523KB2
-
Suppliers
DataSheet
General Description
NJG1523KB2 General Description
NJG1523KB2 is a SPDT switch IC featured low insertion loss, medium handling power and high isolation.
This device is suitable for switching of Tx/Rx signals at sub-microwave applications.
This switch exhibits wide frequency range from 50MHz to 3.0GHz at low operating voltage of 2.5V, and is operated up to 25dBm at 3.0V operating voltage.
The ultra small & ultra thin FLP6 package is applied.
NJG1523KB2 Maximum Ratings
| PARAMETER | SYMBOL | CONDITIONS | RATINGS | UNITS |
| Input Power | Pin | V CTL (L) =0V, V CTL (H) =2.7V | 32 | dBm |
| Control Voltage | VCTL | V CTL (H) - V CTL (L) | 7.5 | V |
| Power Dissipation | PD | 450 | mW | |
| Operating Temp. | Topr | -30~+85 | °C | |
| Storage Temp. | Tstg | -55~+125 | °C |
NJG1523KB2 Features
Single low voltage control +2.5~+6.5V
Low insertion loss 0.4dB typ. @f=1GHz, Pin=23dBm
0.5dB typ. @f=2GHz, Pin=23dBm
High isolation 29dB typ. @f=2GHz, Pin=23dBm
Handling power 25dBm max. @f=2GHz, VCTL=3.0V
Low current consumption 8uA typ. @f=0.05~2.5GHz, Pin=23dBm
Ultra small & ultra thin package FLP6-B2 (Mount Size: 2.1x2.0x0.75mm)
Low insertion loss 0.4dB typ. @f=1GHz, Pin=23dBm
0.5dB typ. @f=2GHz, Pin=23dBm
High isolation 29dB typ. @f=2GHz, Pin=23dBm
Handling power 25dBm max. @f=2GHz, VCTL=3.0V
Low current consumption 8uA typ. @f=0.05~2.5GHz, Pin=23dBm
Ultra small & ultra thin package FLP6-B2 (Mount Size: 2.1x2.0x0.75mm)

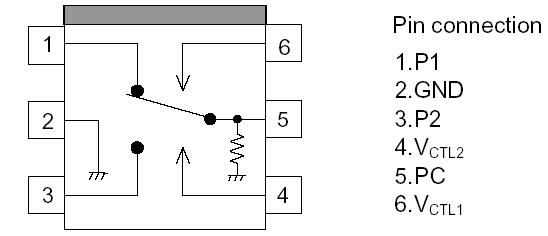

NJG1523KB2 Connection Diagram
NJG1523KB2
PDF/DataSheet Download
- Datasheet: NJG1523KB2
- File Size: 174393 KB
- Manufacturer: NJRC [New Japan Radio]
- Click here to Download
