Part Number: NJG1524APC1
Description: NJG1524APC1 is a DPDT switch GaAs MMIC.The two same switches are merged into one packageand functio...
- Table of contents:
NJG1524APC1
-
Suppliers
DataSheet
General Description
NJG1524APC1 General Description
NJG1524APC1 is a DPDT switch GaAs MMIC.
The two same switches are merged into one package and functionally linked. It is useful for switching two circuits in-line.
Each switches feature very low loss, high isolation and wide frequency coverage from 50MHz to 3GHz at low control voltage of 2.5V.
The ultra small & thin FFP16-C1package is adopted.
NJG1524APC1 Maximum Ratings
| PARAMETER | SYMBOL | CONDITIONS |
RATINGS |
UNITS |
| Input Power | PIN | VCTL (L)=0V, VCTL (H)=2.7V |
28 |
dBm |
| Control voltage | VCTL | VCTL (H) - VCTL (L) |
7.5 |
V |
| Power Dissipation | PD |
400 |
mW | |
| Operating Temp. | Topr |
-40~+85 |
°C | |
| Storage Temp. | Tstg |
-55~+125 |
°C |
NJG1524APC1 Features
Single low voltage control
Low insertion loss
High isolation
Handing power
Low current consumption
Ultra small & thin package
Low insertion loss
High isolation
Handing power
Low current consumption
Ultra small & thin package

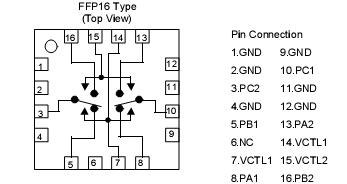

NJG1524APC1 Connection Diagram
NJG1524APC1
