Features:

·  Low voltage operation +2.7V typ.
·   Low current consumption 9mA typ.
·  High conversion gain 28dB typ. @fRF=820MHz, PRF=-50dBm, fLO=690MHz, PLO=-10dBm
·  Low noise figure 1.7dB typ. @fRF=820MHz, fLO=690MHz, PLO=-10dBm
·  High IIP3 -14dBm typ. @fRF=820.0+820.1MHz, fLO=690MHz, PLO=-10dBm
·  Package SSOP10


Pinout

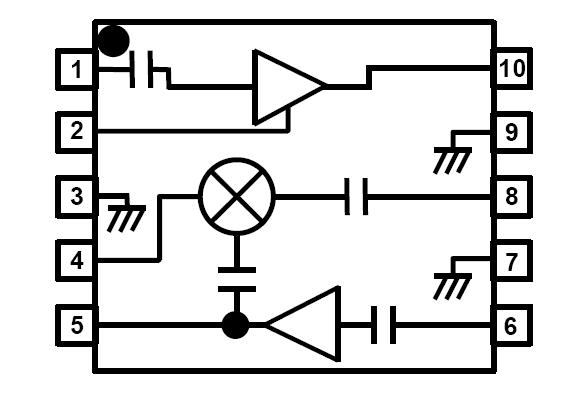

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS RATINGS UNITS
LNA Voltage VLNA   5.0 V
MIXER Voltage VMIX   5.0 V
LOCAL Amplifier Voltage VLO   5.0 V
Input Power 1 PLNAIN VLNA=VMIX=VLO=2.7V +15 dBm
Input Power 2 PLOIN VLNA=VMIX=VLO=2.7V +10 dBm
Power Dissipation PD   320 mW
Operating Temperature Topr   -40~+85 °C
Storage Temperature Tstg   -55~+125 °C



Description

NJG1704V is a front-end GaAs MMIC including a LNA, local amplifier and MIXER, designed mainly for 800MHz band cellular phone.

NJG1704V exhibits low noise of 1.7dB at low total current consumption of 9.0mA.
