Part Number: NJM2143









Description: The NJM2143 is a single-supply operational amplifier in VSP8.Its input stage of Darlington PNP detects GND level.

Urgent Purchase

NJM2143 General Description


The NJM2143 is a single-supply operational amplifier in VSP8.Its input stage of Darlington PNP detects GND level.

There is no crossover distortion in single supply operation when the load is direct-coupled to ground.

NJM2143 Maximum Ratings

PARAMETER
SYMBOL
RATINGS
UNIT
Supply Voltage
V+(V+/V-)
20 ( ± 10 )
V
Differential Input Voltage
VID
20
V
Input Voltage
VIC
-0.3~+20 ( note1 )
V
Power Dissipaation
PD
320
mW
Operating Temperature Range
Topr
-40~+85
°C
Storage Temperature Range
Tstg
-50~+125
°C
( note1 ) When input voltage is less than +20V, the absolute maximum control voltage is equal to the input voltage.

NJM2143 Features

Single-Supply Operation
Operating Voltage ( +3~+20V )
Low Operating Current ( 0.7mA typ. )
Bipolar Technology
Package Outline VSP8,TVSP8

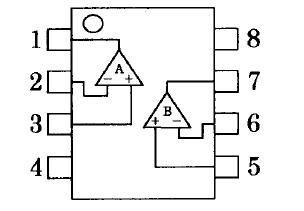

NJM2143 Connection Diagram

NJM2143 Connection Diagram

NJM2143 datasheet

NJM2143
PDF/DataSheet Download
