Part Number: NJM2383



MFG: JRC

Package Cooled: SOP

D/C: 2002

Description: The NJM2383 is a low voltage operation DC/DC converter control IC featuring high side cur...


Urgent Purchase

NJM2383 General Description


The NJM2383 is a low voltage operation DC/DC converter control  IC  featuring  high  side  current  protection,  soft  start and standby functions.

It  is  suitable  for  power module  application  and  on-board regulators.

NJM2383 Maximum Ratings

PARAMETER SYMBOL MAXIMUM RATINGS UNITS
Input Voltage V+ 36 V
Reference Output Current IOR 10 mA
Output Sink Current ISINK 200 mA
Differential Input Voltage VID 2.5 V
Common Mode Input Voltage VIC -0.3 ∼ 2.5 V
ON/OFF Control Voltage VON/OFF -0.3 ∼ 36 (note) V
Power Dissipation PD (DIP 14) 700
(DMP 14) 300
(SSOP 14) 250 		mW
Operating Temp. Topr -40~+85
Storage Temp. Tstg -55~+125
(note) When the supply voltage is less than 36V, the absolute maximum input voltage is equal to the supply voltage.

NJM2383 Features

· PWM switching control
· Operating Voltage    (3.6 to 32V)
· Wide Oscillator Range   (5 to 350 kHz)
· ON/OFF Circuit    (High Active)
· Current Sensing Amplifier
· Soft-Start Function
· UVLO(Under Voltage Lockouts)
· Bipolar Technology
· Package Outline        DIP14, DMP14, SSOP10

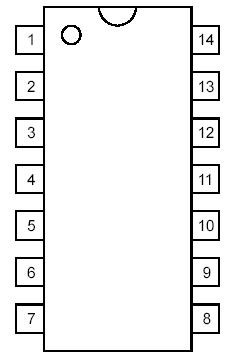

NJM2383 Connection Diagram

NJM2383 Connection Diagram
