NJM2584AD, US $ .78-.83 , NJR, NJM2584AD DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00475603 Detail

NJM2584AD: Video ICs Wideband 3 Crct Sw

NJM2584AD Data Sheet

US $ .78~.83 / Piece | Get Latest Price

Part Number:: NJM2584AD
Mfg:: NJR
Supply Ability:: 5000

Price Break

Qty
0~1000
1000~2000

Unit Price
$.83
$.78

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NJM2035D evaluate
US $.44 - .64 / Piece

Audio DSPs 1V <3mA
NJM2035M evaluate
US $.47 - .56 / Piece

Audio DSPs 1V <3mA
NJM2035M-T1 evaluate
Audio Amplifiers Desc Unavailable

Product Details

Quick Details

Operating Supply Voltage :	10 V	Supply Current :	15 mA
Maximum Operating Temperature :	85 C	Package / Case :	DIP-16
Packaging :	Tube

Description

Packaging : Tube
Maximum Operating Temperature : 85 C
Package / Case : DIP-16
Operating Supply Voltage : 10 V
Supply Current : 15 mA

Features:

` Operating Voltage 4.5 to 9.0V
` Wide frequency range 0dB at 50MHz typ.
` Internal 2 input-1output 3-circuit video switch
` Input coupling capacitor is 1F
` Operating Current 10mA typ.
` Bipolar Technology
` Package Outline DIP16, DMP16

Pinout

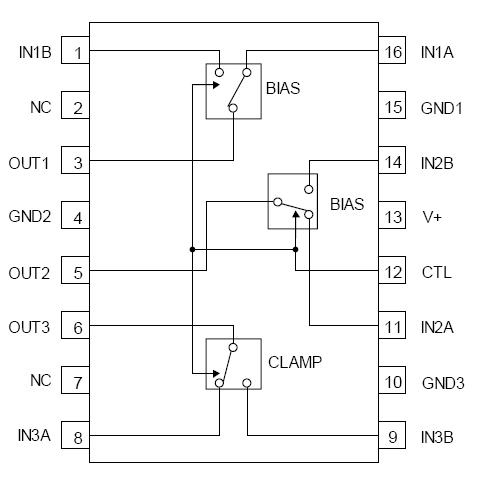

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATING	UNIT
Supply Voltage	Vcc	10	V
Power Dissipation	P_D	(DIP) 500 (DMP) 300	mW
Operating Temperature Range	T_opr	-40 to +85	°C
Storage Temperature Range	T_stg	-40 to +125	°C

Description

The NJM2584A is a wide band 2-Input 1-Output 3-Circuit video switch. It is suitable for Y, Pb, and Pr signal because frequency range is 50MHz.

The NJM2584A is suitable for PTV, DTV, PDP and other high quality AV systems.
