Part Number: NJM2732D



MFG: JRC



D/C: 0809+

Description: NJM2732 is dual operational amplifier with full swing input and output, operate from 1.8V. Input and Outp...


Urgent Purchase

NJM2732D General Description


NJM2732 is dual operational amplifier  with full swing input and output, operate from 1.8V.

Input and Output Full Swing provides wide dynamic  range, is from ground  to power supply level. In addition to ground sensing applications, NJM2732 enable to be applied  to Hi-side sensing applications.

The features are low noise and low operating  voltage for battery management, portable audio applications, and others.

NJM2732D Maximum Ratings

PARAMETER SYMBOL MAXIMUM RATINGS UNITS
Supply Voltage V+ 7.0 V
Differential Input Voltage Range VID ±1.0 V
Common Mode Input Voltage Range VIC 0 ~ 7.0 (Note1) V
Power Dissipation PD (DIP8) 500
(DMP8) 300
(EMP8) 320
(SSOP8) 250
(TVSP8) 320 		mW
Operating Temp. Topr -40~+85
Storage Temp. Tstg -40~+125
(Note1) For supply voltage less than 7V, the absolute maximum input voltage is equal to the supply voltage.

NJM2732D Features

Operating Voltage    :1.8 to 6.0V
Input Full-Swing  :VICM= 0 to 5.0V, at V+=5V
Output Full-Swing  :VOH4.9V/ VOL0.1V, at V+=5V, RL=20kΩ
Load Drivability  :VOH4.75V/ VOL0.25V, at V+=5V, RL=2kΩ
Offset Voltage    :5mV max.
Slew Rate  :0.4V/µs typ.
Low Input Voltage Noise  :10nV/Hz typ.
Adequate phase margin  :M=75deg. typ., at RL=2kΩ, voltage follower
Bipolar Technology
Package Outline  :DIP8, DMP8, EMP8, SSOP8, TVSP8

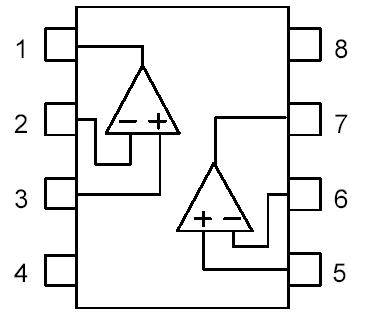

NJM2732D Connection Diagram

NJM2732D Connection Diagram

NJM2732D datasheet
