MFG:JRC Package Cooled:SOP D/C:2001
MFG: JRC
Package Cooled: SOP
D/C: 2001
Description: The NJM2775A is a pre&power amplifier with ALC designed for micro and compact cassette recorders. ...

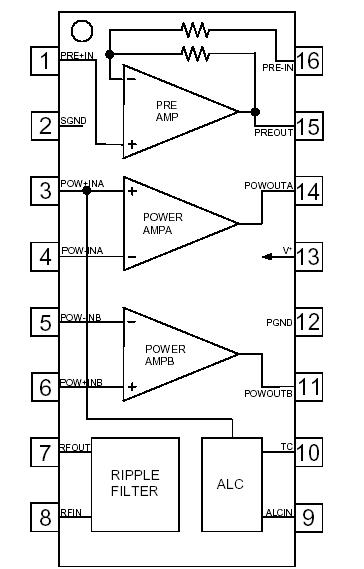

The NJM2775A is a pre&power amplifier with ALC designed for micro and compact cassette recorders. It contains pre-amplifier, ALC circuit, power amplifiers, and ripple filter. The pre-amplifier amplifies the signal come from magnetic head. The ALC circuit limits the input signal to optimize level in recording. The power amplifiers drive a speaker in play back and the magnetic head in recording. The ripple filter stabilizing the supply voltage to the internal pre-amplifier and an external condenser microphone.
The NJM2775A improves high output power compared with the NJM2128.
It is suitable for portable tape recorder, and other portable playing back and recording recorder items.
| PARAMETER | SYMBOL | RATINGS | UNIT |
| Supply Voltage | V+ | +7.0 | V |
| PA Output Peak Current | IOP | 1 | A |
| PA Input Voltage Range | VIN | ±0.4 | V |
| Power Dissipation | PD | (DMP16)300 | mW |
| Operating Temperature Range | Topr | -20 to +75 | |
| Storage Temperature Range | Tstg | -40 to +125 |
NJM2775A
PDF/DataSheet Download
