NJM2901
-
Suppliers
DataSheet
General Description
NJM2901 General Description
These devices offer higher frequency operation and faster switching than can be had from internally compensated quad op amps.Indeed for single-supply applications,the Darlington PNP input stage allows them to compare voltages that include ground.The two-stage common-emitter output circuit provides gain and output sink capacity of 6mA at an output level of 400mV.The output collector is left open,permitting the designer to drive devices in the range of 2V to 36V.
NJM2901 Maximum Ratings
|
Symbol |
Description |
RATINGS
|
Unit |
|
VIN |
Supply Voltage |
36 (± 18) |
V |
|
VCONT |
Power Dissipation |
( DIP14 ) 570
( DMP14 ) 300 ( SSOP14 ) 300 |
V |
|
PD |
Power Dissipation |
320
|
mW |
|
Topr |
Operating Temperature |
−40 ∼ +85
|
°C |
|
TSTG |
Storage Temperature |
-50~+125
|
° C |
NJM2901 Features
Operating Voltage ( +2V~+36V )
Single Supply Operation
Open Collector Output
Package Outline DIP14,DMP14,SSOP14
Bipolar Technology
Single Supply Operation
Open Collector Output
Package Outline DIP14,DMP14,SSOP14
Bipolar Technology

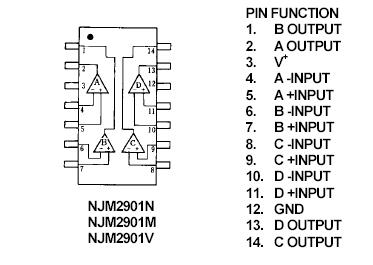

NJM2901 Connection Diagram
NJM2901
PDF/DataSheet Download
- Datasheet: NJM2901
- File Size: 86724 KB
- Manufacturer:
- Click here to Download
