Description: The NJM2904 consists of two independent,high gain,internally frequency compensated operation amplifier...
- Table of contents:
NJM2904
-
Suppliers
DataSheet
General Description
NJM2904 General Description
The NJM2904 consists of two independent,high gain,internally frequency compensated operation amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers,DC gain blocks,and all the conventional op amp circuits which now can be more easily implemented in single power supply systems.For example,the NJM2904 can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power
NJM2904 Maximum Ratings
|
Symbol |
Description |
RATINGS
|
Unit |
|
V+(V+/V-) |
Input Voltage |
32 ( or ± 16 ) |
V |
|
VID |
Differential Input Voltage |
32
|
V |
|
VIC |
Input Voltage |
-0.3~+32
|
V |
|
PD |
Power Dissipation |
( DIP14 ) 570
( DMP14 ) 300 ( SSOP14 ) 300 |
mW |
|
TPOR |
Operating Temperature Range |
-40~+85
|
° C |
|
TSTG |
Storage Temperature Range |
−40 ∼ +125
|
° C |
NJM2904 Features
Single Supply
Operating Voltage ( +3V~+32V )
Low Operating Current ( 0.7mA typ. )
Slew Rate ( 0.5V/µs typ. )
Bipolar Technology
Package Outline DIP8,DMP8,SIP8,SSOP8
Operating Voltage ( +3V~+32V )
Low Operating Current ( 0.7mA typ. )
Slew Rate ( 0.5V/µs typ. )
Bipolar Technology
Package Outline DIP8,DMP8,SIP8,SSOP8

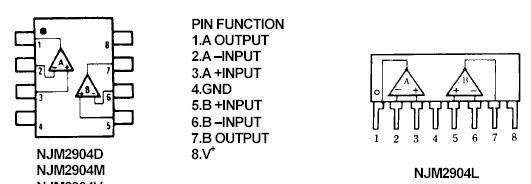

NJM2904 Connection Diagram
NJM2904
PDF/DataSheet Download
- Datasheet: NJM2904
- File Size: 157035 KB
- Manufacturer: NJR
- Click here to Download
