MFG:JRC Package Cooled:DIP
MFG: JRC
Package Cooled: DIP
Description: The NJM3772 is a stepper motor driver, which circuit is especially developed for use in microstepping applications in conjunctio...
The NJM3772 is a stepper motor driver, which circuit is especially developed for use in microstepping applications in conjunction with the matching dual DAC (Digital-to-Analog Converter) NJU39610.
The NJM3772 contains a clock oscillator, which is common for both driver channels, a set of comparators and flip-flops implementing the switching control, and two H-bridges with internal recirculation diodes. Voltage supply requirements are +5 V for logic and +10 to +45V for the motor. Maximum outpu tcurrent is 1000mA per channel.

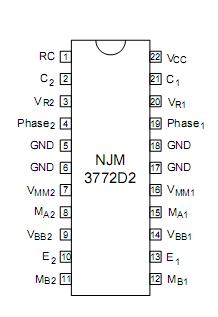

| Parameter | Pin no. DIP package | Symbol | Min | Max | Unit |
| Voltage | |||||
| Logic supply | 22 | VCC | 0 | 7 | V |
| Motor supply | 7, 16 | VMM | 0 | 45 | V |
| Output stage supply | 9, 14 | VBB | 0 | 45 | V |
| Logic inputs | 4, 19 | VI | -0.3 | 6 | V |
| Comparator inputs | 2, 21 | VC | -0.3 | VCC | V |
| Reference inputs | 3, 20 | VR | -0.3 | 7.5 | V |
| Current | |||||
| Motor output current | 8, 11, 12, 15 | IM | -1200 | +1200 | mA |
| Logic inputs | 4, 19 | II | -10 | - | mA |
| Analog inputs | 2, 3, 20, 21 | IA | -10 | - | mA |
| Temperature | |||||
| Operating junction temperature | Tj | -40 | +150 | °C | |
| Storage temperature | TS | -55 | +150 | °C | |
| Power Dissipation (Package Data) | |||||
| Power dissipation at TGND = +25°C, DIP and PLCC package | PD | - | 5 | W | |
| Power dissipation at TGND = +125°C, DIP package | PD | - | 2.2 | W | |
| Power dissipation at TGND = +125°C, PLCC package | PD | - | 2.6 | W |
NJM3772D2
PDF/DataSheet Download
