Part Number: NJU26100









Description: This document describes the NJU26100 Series common hardware specifications.This document is ap...


Urgent Purchase

NJU26100 General Description


This document describes the NJU26100 Series common hardware specifications.

This document is applied to the NJU26101 up to the NJU26199.

The individual function is described in the each data sheet. Please refer to the each data sheet to find the detail functions. The firmware commands are described in the each firmware document.

NJU26100 Maximum Ratings

Parameter Symbol Rating Units
Supply Voltage VDD 0 to 3.05 V
XI Input Voltage Vx(OSC) -0.3 to VDD V
Input Pin Voltage Vx(IN) -0.3 to 3.6 V
Power Dissipation PD 0.3 W
Storage Temperature Tstg -40 to +125 °C
*1 They apply SCL/SCK, AD1/SDIN, AD2/SSb, RESETb, SDI0, SDI1, SDI2, LRI, and BCKI pin. It applies to GPIO0 (SEL1) pin of NJU26100 series except NJU26150. However, it applies to SDA/SDOUT pin at the time of I2C mode operation.

NJU26100 Features

• 24bit Fixed-point Digital Signal Processing
• Maximum System Clock Frequency : 38MHz
• Digital Audio Interface : 3 Input ports / 3 Output ports
• Master / Slave Mode
• Master Mode MCK :1/2 fclk, 1/3 fclk ex. MCK = 384Fs(1/2) or MCK = 256Fs(1/3) at fclk=768Fs
• Two kinds of micro computer interface I2C bus (standard-mode/100kbps) Serial interface (4 lines: clock, enable, input data, output data)
• Power Supply : 2.5V ( 3.3V Input tolerant )
• Package : QFP32-R1

NJU26100 Connection Diagram

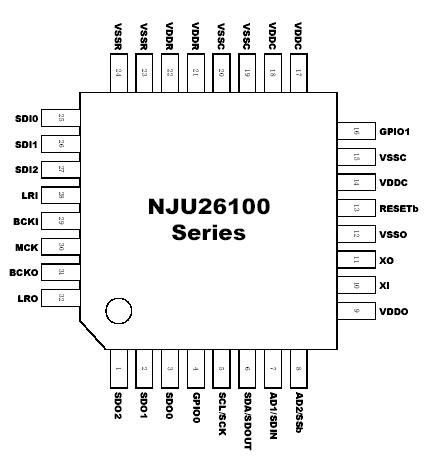

NJU26100 Connection Diagram

NJU26100 datasheet

NJU26100
PDF/DataSheet Download
