Description: The NJU3552 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory.
- Table of contents:
NJU3552
-
Suppliers
DataSheet
General Description
NJU3552 General Description
The NJU3552 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory.
It is completely compatible with the NJU3502 in function and the pin configuration. Therefore, the NJU3552 is suitable for the final evaluation before NJU3502 mask generation, the small quantity production and short leadtime.
* In this data sheet, only OTP programming and the difference between NJU3552 and NJU3502 are mentioned mainly.
Therefore the detail function and specification should be referred on the NJU3502 data sheet.
NJU3552 Maximum Ratings
| PARAMETER | SYMBOL | RATINGS | UNIT |
| Supply Voltage | VDD | -0.3 ~ +7.0 | V |
| Input Voltage | VIN | -0.3 ~ VDD + 0.3 | V |
| Output Voltage | VOUT | -0.3 ~ VDD + 0.3 | V |
| Operating Temperature | Topr | -20 ~ +75 | |
| Storage Temperature | Tstg | -55 ~ +125 |
NJU3552 Features
` Internal One Time Programmable ROM 1,024 X 8bits
` Internal Data RAM 64 X 4bits
` Wide operating voltage range 2.7V ~ 5.5V
` Package outline SDIP24 / DMP24
` ROM programmer "SUPERPRO/L" by XELTEK co,.
` Internal Data RAM 64 X 4bits
` Wide operating voltage range 2.7V ~ 5.5V
` Package outline SDIP24 / DMP24
` ROM programmer "SUPERPRO/L" by XELTEK co,.

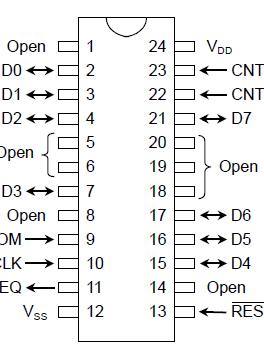

NJU3552 Connection Diagram
NJU3552
PDF/DataSheet Download
- Datasheet: NJU3552
- File Size: 175359 KB
- Manufacturer: NJRC [New Japan Radio]
- Click here to Download
