Part Number: NJU3554FA1
Description: The NJU3554 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory.
- Table of contents:
NJU3554FA1
-
Suppliers
DataSheet
General Description
NJU3554FA1 General Description
The NJU3554 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory.
It is completely compatible with the NJU3504 in function and the pin configuration. Therefore, the NJU3554 is suitable for the final evaluation before NJU3504 mask generation, the small quantity production and short leadtime.
NJU3554FA1 Maximum Ratings
| PARAMETER | SYMBOL | RATINGS | UNIT |
| Supply Voltage | VDD | -0.3 ~ +7.0 | V |
| Input Voltage | VIN | -0.3 ~ VDD + 0.3 | V |
| Output Voltage | VOUT | -0.3 ~ VDD + 0.3 | V |
| Analog Supply Voltage | AVDD | -0.3 ~ VDD + 0.3 | V |
| Analog Reference Voltage | VREF | -0.3 ~ AVDD + 0.3 | V |
| Analog Input Voltage | AIN0 ~ AIN3 | -0.3 ~ AVDD + 0.3 | V |
| Operating Temperature | Topr | -20 ~ +75 | °C |
| Storage Temperature | Tstg | -55 ~ +125 | °C |
The difference of electrical characteristics between NJU3554 (OTP version) and NJU3504 (MASK version)
NJU3554FA1 Features
`Internal One Time Programmable ROM 4,096 X 8bits
`Internal Data RAM 256 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline QFP44-A1 / SDIP42 (Compatible with NJU3504)
`ROM programmer "SUPERPRO/L" by XELTEK co,.
`Internal Data RAM 256 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline QFP44-A1 / SDIP42 (Compatible with NJU3504)
`ROM programmer "SUPERPRO/L" by XELTEK co,.

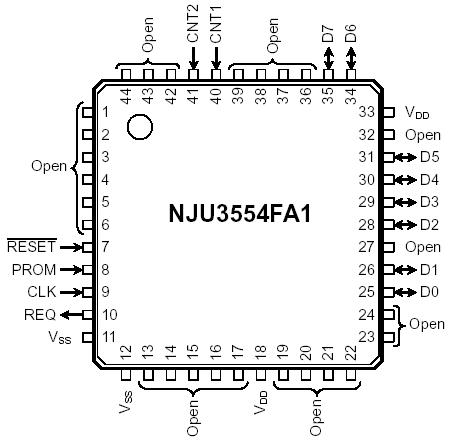

NJU3554FA1 Connection Diagram
NJU3554FA1
