Part Number: NJU3555FA1
Description: The NJU3555 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programma...
- Table of contents:
NJU3555FA1
-
Suppliers
DataSheet
General Description
NJU3555FA1 General Description
The NJU3555 is the C-MOS 4-bit Single Chip OTP type Micro Controller with programmable Flash Memory. It is completely compatible with the NJU3505 in function and the pin configuration. Therefore, the NJU3555 is suitable for the final evaluation before NJU3505 mask generation, the small quantity production and short leadtime.
NJU3555FA1 Maximum Ratings
| PARAMETER | SYMBOL | RATINGS | UNIT |
| Supply Voltage | VDD | -0.3 ~ +7.0 | V |
| Input Voltage | VIN | -0.3 ~ VDD + 0.3 | V |
| Output Voltage | VOUT | -0.3 ~ VDD + 0.3 | V |
| Analog Supply Voltage | AVDD | -0.3 ~ VDD + 0.3 | V |
| Analog Reference Voltage | VREF | -0.3 ~ AVDD + 0.3 | V |
| Analog Input Voltage | AIN0 ~ AIN7 | -0.3 ~ AVDD + 0.3 | V |
| Operating Temperature | Topr | -20 ~ +75 | °C |
| Storage Temperature | Tstg | -55 ~ +125 | °C |
The difference of electrical characteristics between NJU3555 (OTP version) and NJU3505 (MASK version)
NJU3555FA1 Features
`Internal One Time Programmable ROM 8,192 X 8bits
8,128 X 8bits (Program area)
64 X 8bits (Option area)
`Internal Data RAM 256 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline QFP44-A1 / SDIP42 (Compatible with NJU3505)
`ROM programmer "SUPERPRO/L" by XELTEK co,.
8,128 X 8bits (Program area)
64 X 8bits (Option area)
`Internal Data RAM 256 X 4bits
`Wide operating voltage range 2.7V ~ 5.5V
`Package outline QFP44-A1 / SDIP42 (Compatible with NJU3505)
`ROM programmer "SUPERPRO/L" by XELTEK co,.

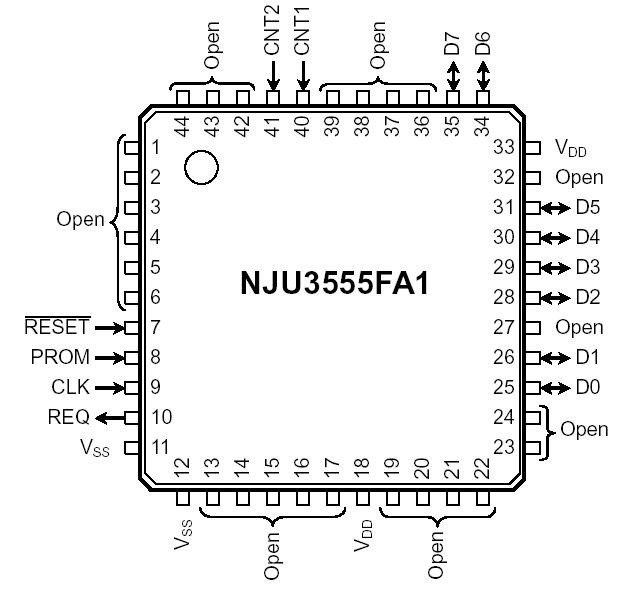

NJU3555FA1 Connection Diagram
NJU3555FA1
PDF/DataSheet Download
- Datasheet: NJU3555FA1
- File Size: 231605 KB
- Manufacturer: NJRC [New Japan Radio]
- Click here to Download
