Part Number: NJU39610
Package Cooled: DIP
Description: NJU39610 is a dual 7-bit+sign, Digital-to-Analog Converter (DAC) especially developed to be used toget...
- Table of contents:
NJU39610
-
Suppliers
DataSheet
General Description
NJU39610 General Description
NJU39610 is a dual 7-bit+sign, Digital-to-Analog Converter (DAC) especially developed to be used together with the NJM3771, Precision Stepper Motor driver in micro-stepping applications. The NJU39610 has a set of input registers connected to an 8-bit data port for easy interfacing directly to a microprocessor. The NJU39610 is well suited for highspeed micro-stepping application.
NJU39610 Maximum Ratings
| Parameter | Pin no.* | Symbol | Min | Max | Unit |
| Voltage | |||||
| Supply | 5 | VDD | - | 6 | V |
| Logic inputs | 6- 17 | VI | -0.3 | VDD+0.3 | V |
| Reference input | 1 | VR | -0.3 | VDD+0.3 | V |
| Current | |||||
| Logic inputs | 6- 17 | II | -0.4 | +0.4 | mA |
| Temperature | |||||
| Storage temperature | Tstg | -55 | +150 | °C | |
| Operating ambient temperature | Topr | -20 | +85 | °C |
NJU39610 Features
• Analog control voltages from 3 V down to 0.0 V
• High-speed microprocessor interface
• Automatic fast/slow current decay control
• Full-scale error ±1 LSB
• Fast conversion speed 3 ms
• Matches NJM3771
• Packages DIP22/PLCC28
• High-speed microprocessor interface
• Automatic fast/slow current decay control
• Full-scale error ±1 LSB
• Fast conversion speed 3 ms
• Matches NJM3771
• Packages DIP22/PLCC28

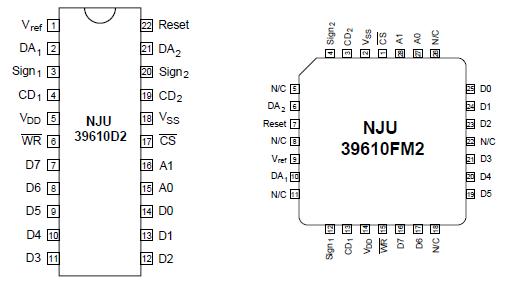

NJU39610 Connection Diagram
NJU39610
PDF/DataSheet Download
- Datasheet: NJU39610
- File Size: 161391 KB
- Manufacturer: NJRC [New Japan Radio]
- Click here to Download
