Product Details

Description



Features:

High Precision Detection Voltage  ±1.0%
Low Quiescent Current  0.8uA typ.
Detection Voltage Range  1.3~6.0V(0.1V Step)
Output Circuit Form   NJU7700: Nch. Open Drain type
                                    NJU7701: C-MOS Output
Package Outline MTP5 (SOT-23-5)

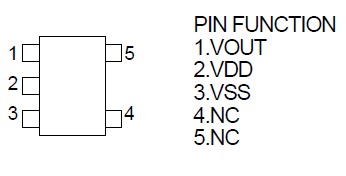

Pinout

Connection Diagram


Specifications

PARAMETER Symbol Ratings Unit
Control Voltage VDD GND-0.3 ∼ VIN+0.3 V
OutputVoltage VOUT GND-0.3 ∼ VIN+0.3 V
Output Current
IOUT
 50
mA
Power Dissipation PD 200 mW
Operating Temperature
TOPR -40 ∼ +85 °C
Storage Temperature TSTG -50 ∼ +125 °C



Description

The NJU7700/01 is a low quiescent current voltage detector Reaturing high precision detection voltage.

The detection voltage of NJU7701 is fixed internally with an accuracy of 1.0%.


NJU7700 is Nch. Open Drain and NJU7701 of output form is a C-MOS output.
