Part Number: NJW1107
Description: The NJW1107 is a Dolby Pro Logic Surround Decoder with discrete 5.1ch input. It includes Dolby Pro Log...
- Table of contents:
NJW1107
-
Suppliers
DataSheet
General Description
NJW1107 General Description
The NJW1107 is a Dolby Pro Logic Surround Decoder with discrete 5.1ch input. It includes Dolby Pro Logic Surround decoder, 4 master volumes, 4 level trimmers and 6 switches.
The 6 switches choose internal Dolby Pro Logic Surround Decoder or discrete 5.1ch inputs. The NJW1107 is most suitable for AV amplifier with discrete 5.1ch inputs for Dolby Digital.
In addition to Dolby Pro Logic Surround function, the NJW1107 performs easily other surround function such as Hall, Live, Disco and others, and echo and microphone mixing functions for Karaoke.
NJW1107 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Supply Voltage | VCC VDD |
10.5 6.5 |
V |
| Power Dissipation | PD | 1.4* | mW |
| Operating Temperature Range | Topr | -20 to +75 | °C |
| Storage Temperature Range | Tstg | -40 to +125 | °C |
NJW1107 Features
·Operating Voltage: VCC=9V(Analog Block), VDD=5V(Digital Block)
·Digital Delay on chip
·Discrete 5.1ch Input for Dolby Digital
·Master Volume for Center, Surround and Subwoofer Channel: -79 to 0dB/1dB step (0dB = Dolby Level)
·Level Trimmer for Center, Surround and Subwoofer Channel: -31 to 0dB/1dB step (0dB = Dolby Level)
·Karaoke function (Echo, MIC mixing)
·Serial Data Interface (3-wire) DATA, REQ, SCK
·Bi-CMOS Technology
·Package Outline QFP80
·Digital Delay on chip
·Discrete 5.1ch Input for Dolby Digital
·Master Volume for Center, Surround and Subwoofer Channel: -79 to 0dB/1dB step (0dB = Dolby Level)
·Level Trimmer for Center, Surround and Subwoofer Channel: -31 to 0dB/1dB step (0dB = Dolby Level)
·Karaoke function (Echo, MIC mixing)
·Serial Data Interface (3-wire) DATA, REQ, SCK
·Bi-CMOS Technology
·Package Outline QFP80

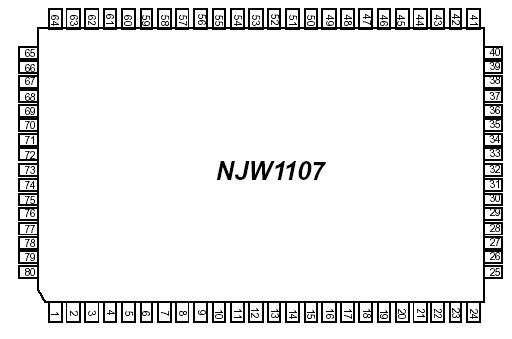

NJW1107 Connection Diagram
NJW1107
PDF/DataSheet Download
- Datasheet: NJW1107
- File Size: 124400 KB
- Manufacturer: NJRC [New Japan Radio]
- Click here to Download
