NJW1141L

Operating Supply Voltage :
Supply Current :
Packaging : Tube
Operating Temperature Range : + 75 C
Mounting Style : Through Hole
Package / Case : SDIP30


Features:

·Operating Voltage 8 to 10V
·I²C BUS Interface
·Internal 4 Input Audio Selectors and Monitor Output
·Low Noise VCA
·Variable AGC Compression Level via I²C (4-levels)
·Bi-CMOS Technology
·Package Outline SDIP30, SDMP30

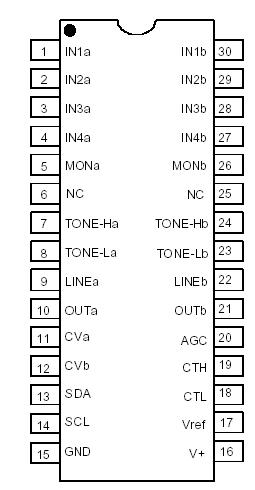

Pinout




Specifications

Parameter	Symbol	Rating	Units
Power Supply Voltage	V+	12	V
Power Dissipation	PD	700	W
Operating Temperature Range	Topr	-20 to +75	°C
Storage Temperature	Tstg	-40 to +125	°C

Description

The NJW1141 is a sound processor includes all of the functions required to process the audio signal for TV, such as tone control, balance, volume, mute, and AGC functions.

All of the internal status of NJW1141L and variables are controlled by I²C BUS interface.
