NJW4100M

Output Current :
Operating Supply Voltage :
Maximum Operating Temperature : + 85 C
Battery Type : Li-Ion
Minimum Operating Temperature : - 20 C
Packaging : Tube
Output Voltage : 4.2 V
Package / Case : DMP


Features:

·Adjustable Charge Voltage
·Adjustable Pre-Charge and Full Charge Current
·Temperature Monitor
·Over Charge Timer
·Internal Re-Charge function
·Delay timers and Hysteresis inputs for high noise immunity
·Over Discharge Battery Detect
·Over Voltage Protection
·Bi-CMOS Technology
·Package Outline  NJW4100M  : DMP20  NJW4100V  : SSOP20

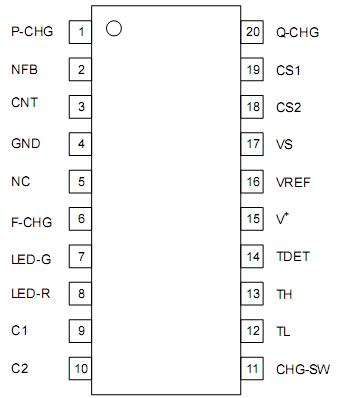

Pinout




Specifications

Parameter	Symbol	Rating	Units
Operating Voltage	V+	+15	V
C1 Pin Voltage	VC1	+5	V
C2 Pin Voltage	VC2	+5	V
TDET Pin Voltage	VTDET	+5	V
CNT Pin Output Current	ISINK-CNT	50	mA
LED-G Pin Output Current	ISINK-G	20	mA
LED-R Pin Output Current	ISINK-R	20	mA
Power Dissipation	PD	DMP20 :300 SSOP20 :300	mW
Operating Temperature Range	Topr	-20 ~ +85	°C
Storage Temperature	Tstg	-40 ~ +125	°C

Description

The NJW4100 is a Lithium-ion Battery Charger Controller IC with over charger timer.

Charger current and voltage can individually be set by the external resistors. Therefore, NJW4100M can be used for a wide range of battery cells for both 1-cell and 2-cell applications.

NJW4100M includes a lot of safety features for safety conscious design: Over voltage, Over discharge, temperature monitor and over charge timers.
