Part Number: NL17SZ86
Description: The NL17SZ86 is a high performance single 2−input Exclusive−OR Gate operating from a 2.3 V to 5.5 V supply....
- Table of contents:
NL17SZ86
-
Suppliers
DataSheet
General Description
NL17SZ86 General Description
The NL17SZ86 is a high performance single 2−input Exclusive−OR Gate operating from a 2.3 V to 5.5 V supply.
NL17SZ86 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage | −0.5 to + 4.6 | V |
| VI | DC Input Voltage | −0.5 to + 4.6 | V |
| VO | DC Output Voltage Output in Higher or Low State (Note 1) | −0.5 to VCC +0.5 | V |
| IIK | DC Input Diode Current VI < GND | ±50 | mA |
| IOK | DC Output Diode Current VO = GND VO = VCC |
−50 +50 |
mA |
| IOU | DC Output Sink Current | ±50 | mA |
| ICC | DC Supply Current per Supply Pin | ±50 | mA |
| IGND | DC Ground Current per Ground Pin | ±50 | mA |
| TSTG | Storage Temperature Range | −65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | °C |
| TJ | Junction Temperature Under Bias | +150 | °C |
| JA | Thermal Resistance SOT- 353 (Note 1) SOT- 553 |
350 | °C/W |
| PD | Power Dissipation in Still Air at 85°C | 150 | mW |
| MSL | Moisture Sensitivity | Level 1 | |
| FR | Flammability Rating Oxygen Index: 28 to 34 | UL 94 V−0 @ 0.125 in | |
| ILatchup | Latchup Performance Above VCC and Below GND @ 85°C (Note 3) | ±500 | mA |
| ESD | ESD Classification Human Body Model (Note 4) Machine Model (Note 5) Charge Device Model (Note 6) |
Class IC Class A N/A |
V |
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. IO absolute maximum rating must be observed.
2. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2−ounce copper trace with no air flow.
3. Tested to EIA/JESD78
4. Tested to EIA/JESD22−A114−A, rated to EIA/JESD22−A114−B.
5. Tested to EIA/JESD22−A115−A, rated to EIA/JESD22−A115−B.
6. Tested to JESD22−C101−A.
NL17SZ86 Features
• Extremely High Speed: tPD 2.4 ns (typical) at VCC = 5.0 V
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability with 5.0 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7SZ86
• Pb−Free Package is Available
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability with 5.0 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7SZ86
• Pb−Free Package is Available

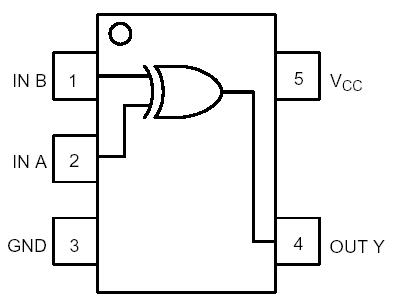

NL17SZ86 Connection Diagram
NL17SZ86
