Purchase NL27WZ00, In-stock NL27WZ00 From SeekIC.
- Table of contents:
NL27WZ00
-
Suppliers
DataSheet
General Description
NL27WZ00 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage |
-0.5 to +7.0 |
V |
|
VI |
DC Input Voltage |
-0.5 to +7.0 |
V |
|
VO |
DC Output Voltage |
-0.5 to +7.0 |
V |
|
IIK |
DC Input Diode Current VI < GND |
-50 |
mA |
|
IOK |
DC Output Diode Current VO < GND |
-50 |
mA |
NL27WZ00 Features
• Extremely High Speed: tPD 2.4 ns (typical) at VCC = 5 V
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability With 5 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7WZ00
• Chip Complexity: FET = 112
• Designed for 1.65 V to 5.5 V VCC Operation
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability With 5 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Replacement for NC7WZ00
• Chip Complexity: FET = 112

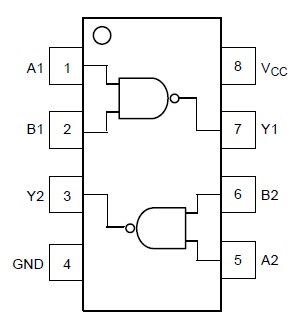

NL27WZ00 Connection Diagram
NL27WZ00
PDF/DataSheet Download
- Datasheet: NL27WZ00
- File Size: 114688 KB
- Manufacturer: ON SEMICONDUCTOR
- Click here to Download
