NLC322522T-221K Selling Leads, Price trend, NLC322522T-221K DataSheet download, circuit diagram from SeekIC.com

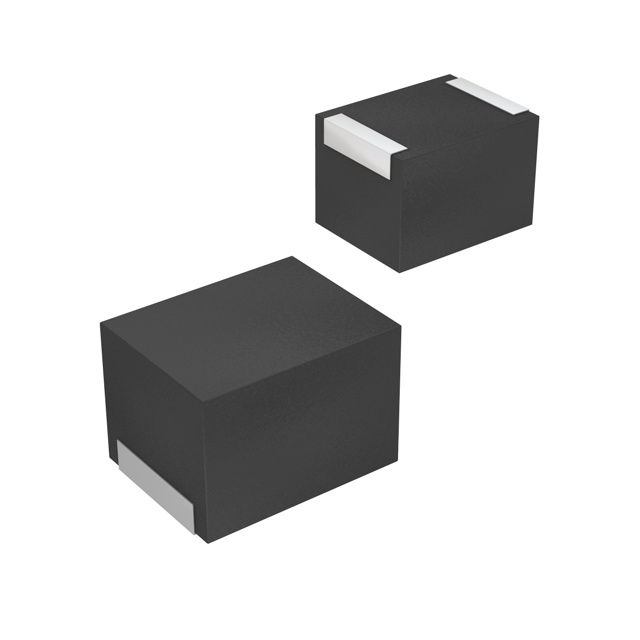

See larger image

SeekIC No. : 003460901 Detail

NLC322522T-221K: INDUCTOR 220UH 10% 322522

NLC322522T-221K Data Sheet

Get Latest Price

Part Number:: NLC322522T-221K
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NLC3225 evaluate
Features: • The NLC series feature low DC resistance and high current handling capacities, m...
NLC322522T-100K evaluate
INDUCTOR 10UH 10% 322522
NLC322522T-101K evaluate
INDUCTOR 100UH 10% 322522

Product Details

Quick Details

Series:	NLC	Manufacturer:	TDK Corporation
Inductance:	220µH	Current:	70mA
Common Mode Rejection Ratio (Min) :	58 dB	Current - Saturation:	-
Current - Temperature Rise:	-	Type:	-
Tolerance:	±10%	Shielding:	Unshielded
DC Resistance (DCR):	8.4 Ohm	Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	7MHz	Material - Core:	-
Package / Case:	1210 (3225 Metric)	Mounting Type:	Surface Mount

Description

Manufacturer: TDK Corporation
Current - Saturation: -
Current - Temperature Rise: -
Shielding: Unshielded
Material - Core: -
Mounting Type: Surface Mount
Type: -
Current: 70mA
Tolerance: ±10%
Package / Case: 1210 (3225 Metric)
Q @ Freq: 20 @ 796kHz
Inductance: 220µH
Frequency - Self Resonant: 7MHz
DC Resistance (DCR): 8.4 Ohm
Packaging: Cut Tape (CT)
Series: NLC

Parameters:

Technical/Catalog Information	NLC322522T-221K
Vendor	TDK Corporation (VA)
Category	Inductors, Coils, Chokes
Inductance	220H
Tolerance	±10%
Package / Case	1210 (3225 metric)
Packaging	Cut Tape (CT)
Type	-
Current	70mA
Mounting Type	Surface Mount
Q @ Freq	20 @ 796kHz
Self Resonant Freq	7MHz
DC Resistance (DCR)	8.400 Ohm Max
Shielding	-
Applications	General Purpose
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NLC322522T 221K NLC322522T221K 445 1154 1 ND 44511541ND 445-1154-1
