Features:

·The I2C™ interface allows the smallest I/O pincount of any EEPROM interface
·16 byte page write mode to minimize total write time per byte
·Typical 200µA active current (ICCA)
·Typical 1µA standby current (ISB) for "L" devices and 0.1µA standby current for "LZ" devices
·Endurance: Up to 1,000,000 data changes
·Data retention greater than 40 years


Pinout

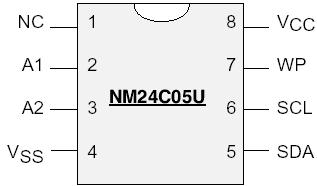

Connection Diagram


Specifications

Ambient Storage Temperature  . . . . 65°C to +150°C
All Input or Output Voltages
with Respect to Ground  . . . . . . . . . . . . . .6.5V to 0.3V
Lead Temperature
(Soldering, 10 seconds)  . . . . . . . . . . . . . . . . . .+300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . .  2000V min.


Description

The NM24C04U/05U devices are 4K (4,096) bit serial interface CMOS EEPROMs (Electrically Erasable Programmable Read- Only Memory). NM24C05U fully conform to the Standard I2C™ 2-wire protocol which uses Clock (SCL) and Data I/O (SDA) pins to synchronously clock data between the "master" (for example a microprocessor) and the "slave" (the EEPROM device). In addition, the serial interface of NM24C05U allows a minimal pin count packaging designed to simplify PC board layout requirements and offers the designer a variety of low voltage and low power options.

NM24C05U incorporates a hardware "Write Protect" feature, by which, the upper half of the memory of NM24C05U can be disabled against programming by connecting the WP pin to VCC. This section of memory then effectively becomes a ROM (Read-Only Memory) and can no longer be programmed as long as WP pin is connected to VCC.

Fairchild EEPROMs are designed and tested for applications requiring high endurance, high reliability and low power consumption for a continuously reliable non-volatile solution for all markets.
