NM24C09U

Features: ·The I2C™ interface allows the smallest I/O pincount of any EEPROM interface·16 byte page write mode to minimize total write time per byte·Typical 200µA active current (ICCA)·Typical 1µA standby current (ISB) for L devices and 0.1µA standby current for LZ devi...

product image

NM24C09U Picture
SeekIC No. : 004434833 Detail

NM24C09U: Features: ·The I2C™ interface allows the smallest I/O pincount of any EEPROM interface·16 byte page write mode to minimize total write time per byte·Typical 200µA active current (ICCA)·T...

floor Price/Ceiling Price

Part Number:
NM24C09U
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·The I2C™ interface allows the smallest I/O pincount of any EEPROM interface
·16 byte page write mode to minimize total write time per byte
·Typical 200µA active current (ICCA)
·Typical 1µA standby current (ISB) for "L" devices and 0.1µA standby current for "LZ" devices
·Endurance: Up to 1,000,000 data changes
·Data retention greater than 40 years



Pinout

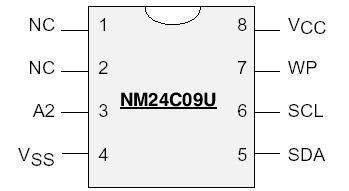

  Connection Diagram


Specifications

Ambient Storage Temperature  . . . .65°C to +150°C
All Input or Output Voltages
with Respect to Ground  . . . . . . . . . . . .  .6.5V to 0.3V
Lead Temperature
(Soldering, 10 seconds)  . . . . . . . . . . . . . . . .  .+300°C
ESD Rating  . . . . . . . . . . . . . . . . . . . . . . . . . .2000V min.



Description

The NM24C08U/09U devices are 8K (8,192) bit serial interface CMOS EEPROMs (Electrically Erasable Programmable Read-Only Memory).NM24C09U fully conform to the Standard I2C™ 2-wire protocol which uses Clock (SCL) and Data I/O (SDA) pins to synchronously clock data between the "master" (for example a microprocessor) and the "slave" (the EEPROM device). In addition, the serial interface of NM24C09U allows a minimal pin count packaging of NM24C09U designed to simplify PC board layout requirements and offers the designer a variety of low voltage and low power options.

NM24C09U incorporates a hardware "Write Protect" feature, by which, the upper half of the memory can be disabled against programming by connecting the WP pin to VCC. This section of NM24C09U then effectively becomes a ROM (Read-Only Memory) and can no longer be programmed as long as WP pin is connected to VCC.

Fairchild EEPROMs NM24C09U are designed and tested for applications requiring high endurance, high reliability and low power consumption for a continuously reliable non-volatile solution for all markets.
