General Description
NM24C65 General Description
The NM24C65 devices are 65,536 bits of CMOS nonvolatile electrically erasable memory. These devices offer the designer different low voltage and low power options, and they conform to all in the Extended IIC 2-wire protocol. Furthermore, they are designed to minimize device pin count and simplify PC board layout requirements.
The upper half of the memory can be disabled (Write Protection) by connecting the WP pin to VCC. This section of memory then becomes ROM.
This communication protocol uses CLOCK (SCL) and DATA I/O (SDA) lines to synchronously clock data between the master (for example a microprocessor) and the slave EEPROM device(s).
Fairchild EEPROMs are designed and tested for applications requiring high endurance, high reliability, and low power consumption.
NM24C65 Maximum Ratings
Ambient Storage Temperature . . . .65°C to +150°C
All Input or Output Voltages
with Respect to Ground 6.5V to . . . . . . . . . . . . . 0.3V
Lead Temperature
(Soldering, 10 seconds) . . . . . . . . . . . . . . . . ..+300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . .2000V min.
All Input or Output Voltages
with Respect to Ground 6.5V to . . . . . . . . . . . . . 0.3V
Lead Temperature
(Soldering, 10 seconds) . . . . . . . . . . . . . . . . ..+300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . .2000V min.
NM24C65 Features
` Extended operating voltage 2.7V 5.5V
` 400 KHz clock frequency (F) at 2.7V - 5.5V
` 200mA active current typical
10mA standby current typical
1mA standby typical (L)
0.1mA standby typical (LZ)
` IIC compatible interface
Provides bidirectional data transfer protocol
` 32 byte page write mode
Minimizes total write time per byte
` Self timed write cycle Typical write cycle time of 6ms
` Hardware write protect for upper block
` Endurance: 1,000,000 data changes
` Data retention greater than 40 years
` Packages available: 8-pin SO, 8-pin DIP
` Low VCC programming lockout (3.8V - on Standard VCC devices only).
` 400 KHz clock frequency (F) at 2.7V - 5.5V
` 200mA active current typical
10mA standby current typical
1mA standby typical (L)
0.1mA standby typical (LZ)
` IIC compatible interface
Provides bidirectional data transfer protocol
` 32 byte page write mode
Minimizes total write time per byte
` Self timed write cycle Typical write cycle time of 6ms
` Hardware write protect for upper block
` Endurance: 1,000,000 data changes
` Data retention greater than 40 years
` Packages available: 8-pin SO, 8-pin DIP
` Low VCC programming lockout (3.8V - on Standard VCC devices only).

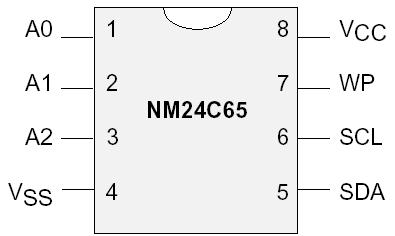

NM24C65 Connection Diagram
NM24C65
PDF/DataSheet Download
- Datasheet: NM24C65
- File Size: 88332 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
