General Description
NM24C65U General Description
The NM24C65U is a 64K (65,536) bit serial interface CMOS EEPROM (Electrically Erasable Programmable Read-Only Memory). This device fully conforms to the Extended I2C™ 2-wire protocol which uses Clock (SCL) and Data I/O (SDA) pins to synchronously clock data between the "master" (for example a microprocessor) and the "slave" (the EEPROM device). In addition, the serial interface allows a minimal pin count packaging designed to simplify PC board layout requirements and offers the designer a variety of low voltage and low power options.
NM24C65U incorporates a hardware "Write Protect" feature, by which the upper half of the memory can be disabled against programming by connecting the WP pin to VCC. This section of memory then effectively becomes a ROM (Read-Only Memory) and can no longer be programmed as long as WP pin is connected to VCC.
Fairchild EEPROMs are designed and tested for applications requiring high endurance, high reliability and low power consumption for a
NM24C65U Maximum Ratings
Ambient Storage Temperature . . . 65°C to +150°C
All Input or Output Voltages
with Respect to Ground . . . . . . . . . . . . .6.5V to 0.3V
Lead Temperature
(Soldering, 10 seconds) . . . . . . . . . . . . . . . . .+300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . .2000V min.
All Input or Output Voltages
with Respect to Ground . . . . . . . . . . . . .6.5V to 0.3V
Lead Temperature
(Soldering, 10 seconds) . . . . . . . . . . . . . . . . .+300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . .2000V min.
NM24C65U Features
`The I2C™ interface allows the smallest I/O pincount of any EEPROM interface
`32 byte page write mode to minimize total write time per byte
`Low VCC programming lockout (3.8V)
- "H" option (Standard VCC range) parts only
`Typical 200µA active current (ICCA)
`Typical 1µA standby current (ISB) for "L" devices and 0.1µA
`standby current for "LZ" devices
`Endurance: Up to 1,000,000 data changes
`32 byte page write mode to minimize total write time per byte
`Low VCC programming lockout (3.8V)
- "H" option (Standard VCC range) parts only
`Typical 200µA active current (ICCA)
`Typical 1µA standby current (ISB) for "L" devices and 0.1µA
`standby current for "LZ" devices
`Endurance: Up to 1,000,000 data changes

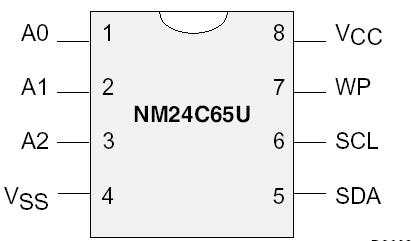

NM24C65U Connection Diagram
NM24C65U
PDF/DataSheet Download
- Datasheet: NM24C65U
- File Size: 91756 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
