NM27C020

Features: `High performance CMOS - 100 ns access time`Simplified upgrade path -VPP and PGM are Don't Care during normal read operation`Manufacturers identification code`JEDEC Standard Pin Configuration - 32-pin CERDIP package - 32-pin PLCC package - 32-pin PDIP packagePinoutSpecificationsStorage...

product image

NM27C020 Picture
See larger image
SeekIC No. : 004434853 Detail

NM27C020: Features: `High performance CMOS - 100 ns access time`Simplified upgrade path -VPP and PGM are Don't Care during normal read operation`Manufacturers identification code`JEDEC Standard Pin Configur...

NM27C020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NM27C020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High performance CMOS
   - 100 ns access time
`Simplified upgrade path
   -VPP and PGM are "Don't Care" during normal read operation
`Manufacturers identification code
`JEDEC Standard Pin Configuration
   - 32-pin CERDIP package
   - 32-pin PLCC package
   - 32-pin PDIP package

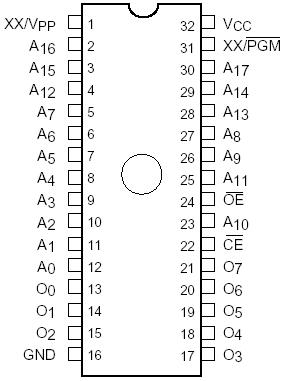

Pinout

Connection Diagram


Specifications

Storage Temperature  . . . . . . . . . . . . . -65°C to +125°C
All Input Voltage Except A9 with
Respect to Ground (Note 13) . . . . . . . . . . . . . -0.6V to +7V
VPPand A9 with Respect to Ground  . . . . . . .-0.6V to +14V
VCC Supply Voltage with
Respect to Ground  . . . . . . . . . . . . . . . . . . . . - 0.6V to +7V
ESD Protection  . . . . . . . . . . . . . . . . . . . . . . . . . . ..>2000V
All Output Voltages with
Respect to Ground (Note 13) VCC  . . . ..+ 10V to GND -0.6V


Description

The NM27C020 is a high speed 2 Megabit CMOS UV-EPROM manufactured on Fairchild's advanced sub-micron technology. Utilizing the AMG architecture, this advanced CMOS process delivers high speeds while consuming low power.

The NM27C020 provides microprocessor-based systems extensive storage capacity for large portions of operating systems and application software. Its 100ns access time provides no-wait-state operation with high-performance CPUs.

The NM27C020 offers a single chip solution for the code storage requirements of 100% firmware-based equipment. Frequentlyused software routines are quickly executed from EPROM storage, greatly enhancing system utility.

The NM27C020 is manufactured using Fairchild's advanced CMOS AMG EPROM technology, and is one member of a high density Fairchild EPROM series family which range in densities up to 4Mb.
