NM93C56

Features: · Wide VCC 2.7V - 5.5V· Typical active current of 200µA 10µA standby current typical 1µA standby current typical (L) 0.1µA standby current typical (LZ)· No Erase instruction required before Write instruction· Self timed write cycle· Device status during programmin...

product image

NM93C56 Picture
See larger image
SeekIC No. : 004434875 Detail

NM93C56: Features: · Wide VCC 2.7V - 5.5V· Typical active current of 200µA 10µA standby current typical 1µA standby current typical (L) 0.1µA standby current typical (LZ)· No Erase in...

NM93C56 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NM93C56
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide VCC 2.7V - 5.5V
· Typical active current of 200µA
    10µA standby current typical
    1µA standby current typical (L)
    0.1µA standby current typical (LZ)
· No Erase instruction required before Write instruction
· Self timed write cycle
· Device status during programming cycles
· 40 year data retention
· Endurance: 1,000,000 data changes
· Packages available: 8-pin SO, 8-pin DIP, 8-pin TSSOP

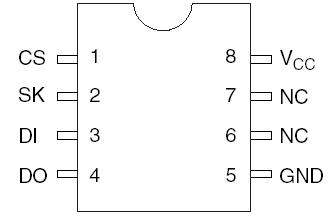

Pinout

Connection Diagram


Specifications

Ambient Storage Temperature . . . -65°C to +150°C
All Input or Output Voltages  . . . . . . . .+6.5V to -0.3V
with Respect to Ground
Lead Temperature
(Soldering, 10 sec.)  . . . . . . . . . . . . . . . . . . .+300°C
ESD rating . . . . . . . . . . . . . . . . . . . . . . . . . . .  2000V


Description

NM93C56 is a 2048-bit CMOS non-volatile EEPROM organized as 128 x 16-bit array.NM93C56 features MICROWIRE interface which is a 4-wire serial bus with chipselect (CS), clock (SK), data input (DI) and data output (DO) signals. This interface is compatible to many of standard Microcontrollers and Microprocessors.

There are 7 instructions implemented on the NM93C56 for various Read, Write, Erase, and Write Enable/Disable operations. This device is fabricated using Fairchild Semiconductor floating-gate CMOS process for high reliability, high endurance and low power consumption.

"LZ" and "L" versions of NM93C56 offer very low standby current making them suitable for low power applications. This device is offered in both SO and TSSOP packages for small space considerations.
