Purchase NSBC114EPDXV6T5G, In-stock NSBC114EPDXV6T5G From SeekIC.

MFG:ON Semiconductor  Category:Discrete Semiconductor Products

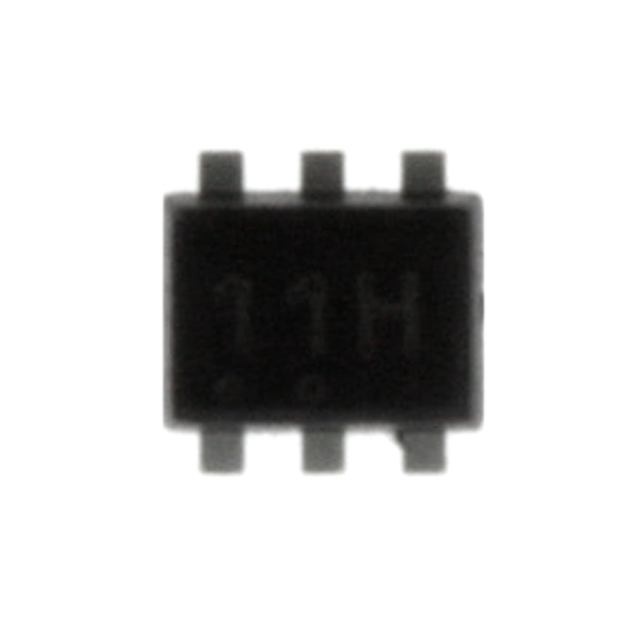

NSBC114EPDXV6T5G Product Image

NSB Series Datasheet download

Five Points

Part Number: NSBC114EPDXV6T5G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor





Descriptions: TRANS BRT DUAL COMPL 50V SOT-563

Price Break

16000

Unit Price

.06358

Extended Price

1017.28

(All prices are in USD) Prices for reference only
Urgent Purchase

NSBC114EPDXV6T5G General Description

TRANS BRT DUAL COMPL 50V SOT-563

NSBC114EPDXV6T5G Parameters

Technical/Catalog InformationNSBC114EPDXV6T5G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max500mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)10K
Vce Saturation (Max) @ Ib, Ic250mV @ 300A, 10mA
Current - Collector Cutoff (Max)500nA
DC Current Gain (hFE) (Min) @ Ic, Vce35 @ 5mA, 10V
Frequency - Transistion-
Mounting TypeSurface Mount
Package / CaseSOT-563
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names NSBC114EPDXV6T5G
NSBC114EPDXV6T5G

NSBC114EPDXV6T5G datasheet
